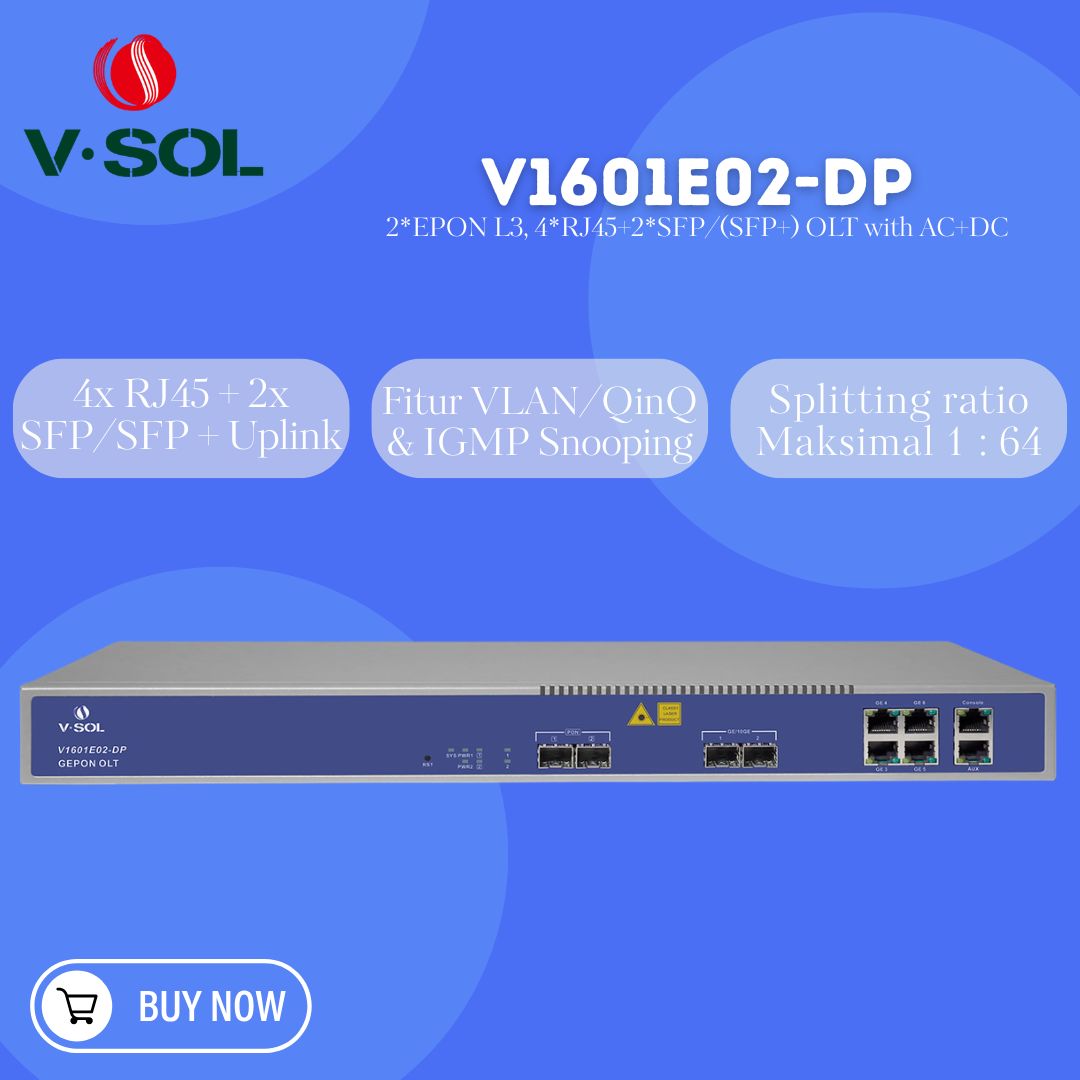

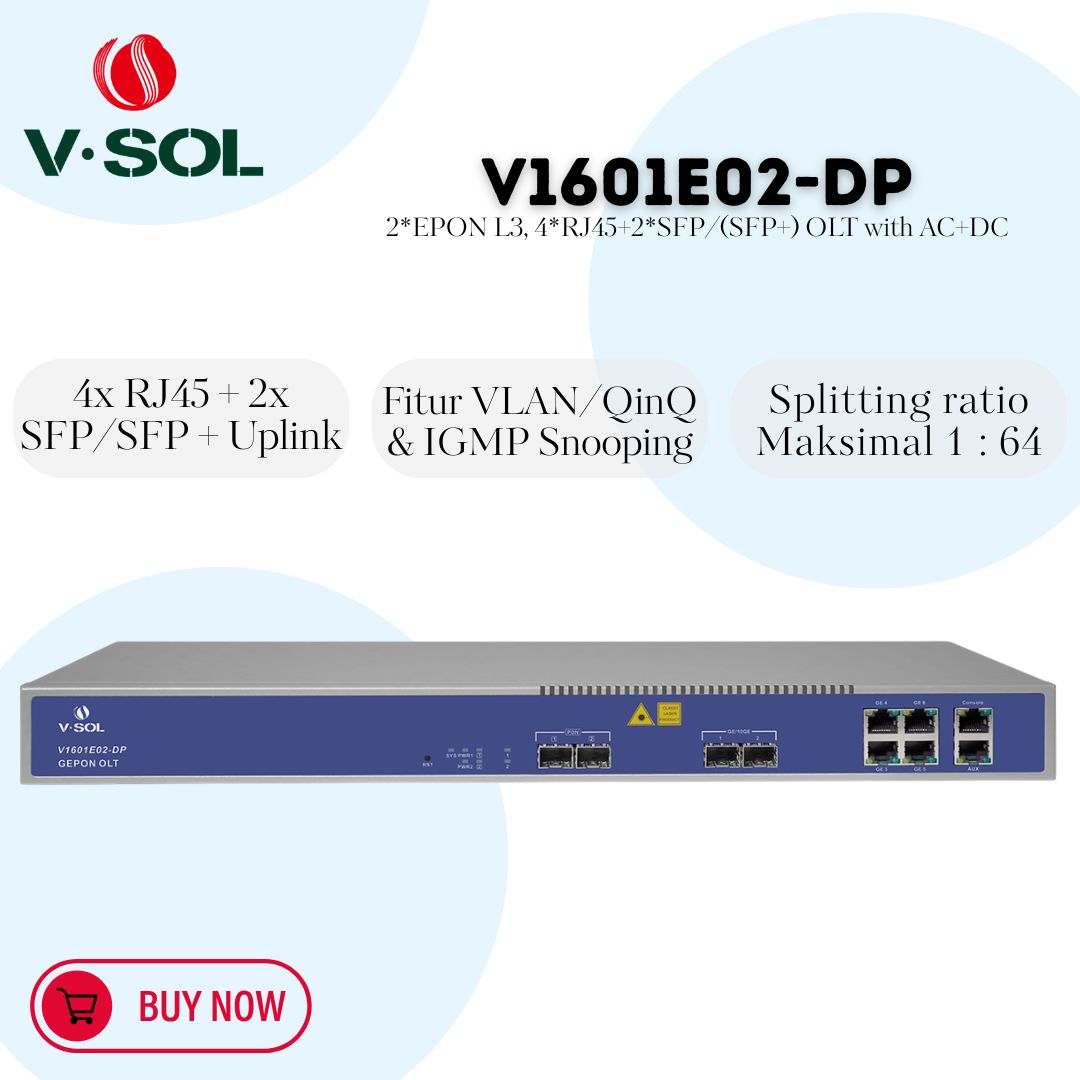

VSOL V1601E02-DP 2*EPON L3, 4*RJ45+2*SFP/(SFP+) OLT AC+DC with 2 SFP PX20+++
VSOL V1601E02-DP 2*EPON L3, 4*RJ45+2*SFP/(SFP+) OLT AC+DC with 2 SFP PX20+++
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Chassis Rack 1U 19 Inch Standard Box
Uplink Port QTY 6
RJ45 4
SFP/ SFP+ 2
EPON Port QTY 2
Physical Interface SFP Slots
Supported PON module level PX20, PX20+, PX20++, PX20+++, PX20++++
Max splitting ratio 1:64
Backplane Bandwidth (Gbps) 128
Port Forwarding Rate (Mpps) 38.688
Dimension (L x W x H) 442mm*200mm*43.6mm
Power Supply AC 100~240 V, 50/60 Hz
DC Power Supply DC: -48V
Power Consumption 30W
Operating Environment Working Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C
Relative Humidity 5 ~ 95% (non-condensing)
Description
Description
Chassis Rack 1U 19 Inch Standard Box
Uplink Port QTY 6
RJ45 4
SFP/ SFP+ 2
EPON Port QTY 2
Physical Interface SFP Slots
Supported PON module level PX20, PX20+, PX20++, PX20+++, PX20++++
Max splitting ratio 1:64
Backplane Bandwidth (Gbps) 128
Port Forwarding Rate (Mpps) 38.688
Dimension (L x W x H) 442mm*200mm*43.6mm
Power Supply AC 100~240 V, 50/60 Hz
DC Power Supply DC: -48V
Power Consumption 30W
Operating Environment Working Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C
Relative Humidity 5 ~ 95% (non-condensing)
