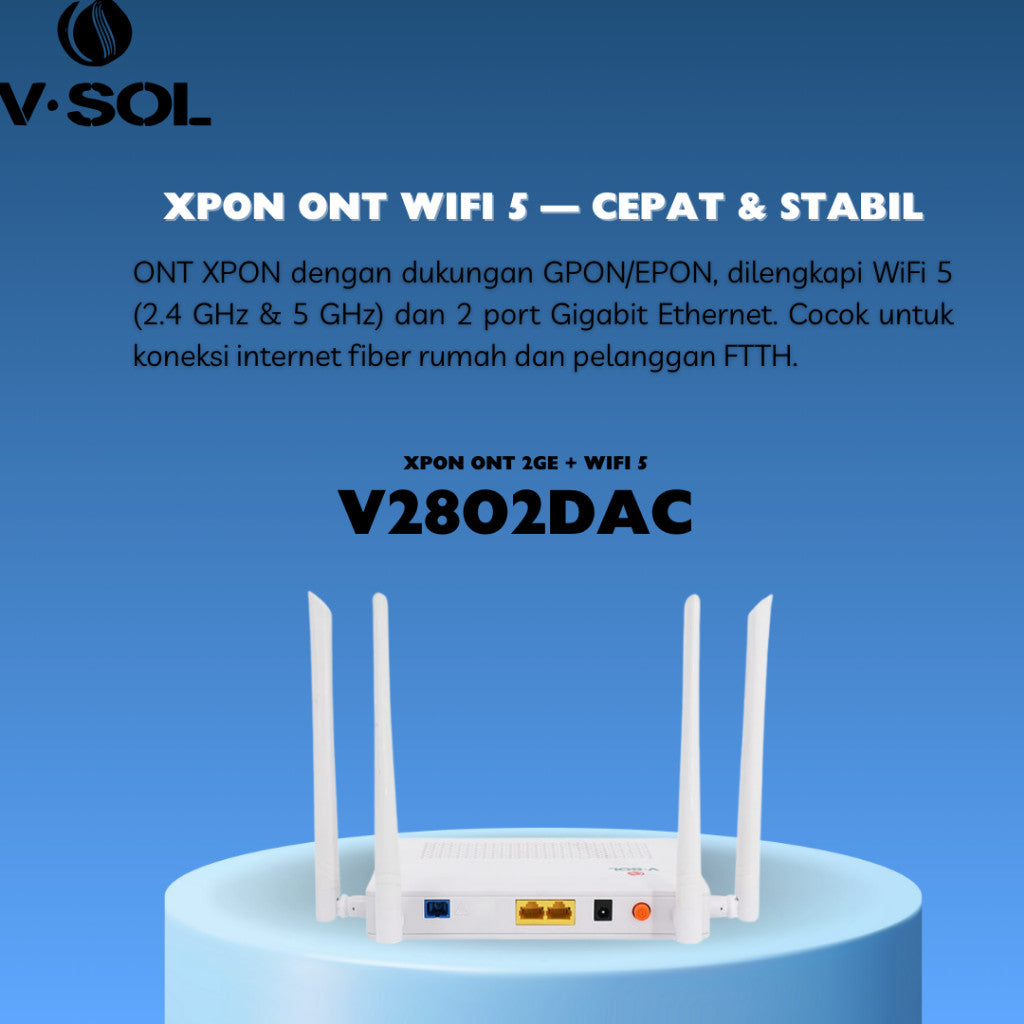

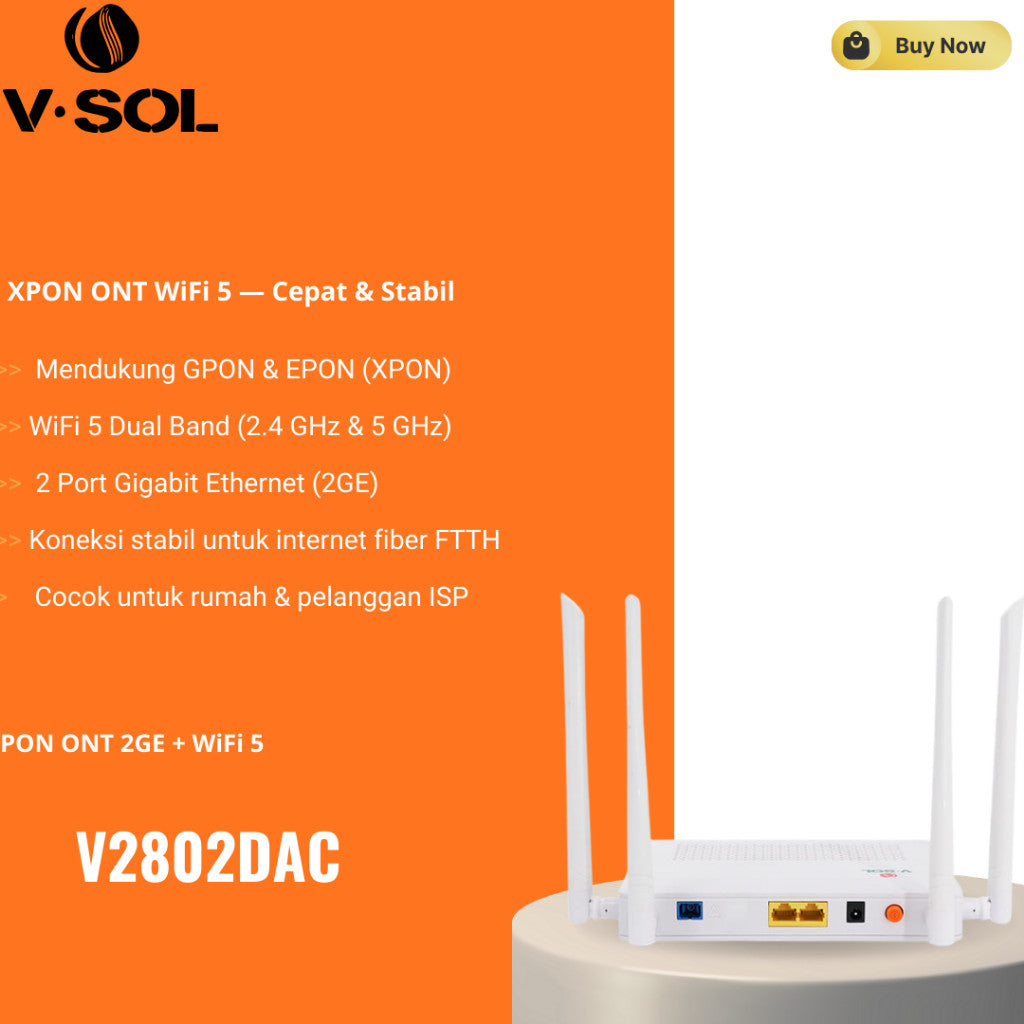

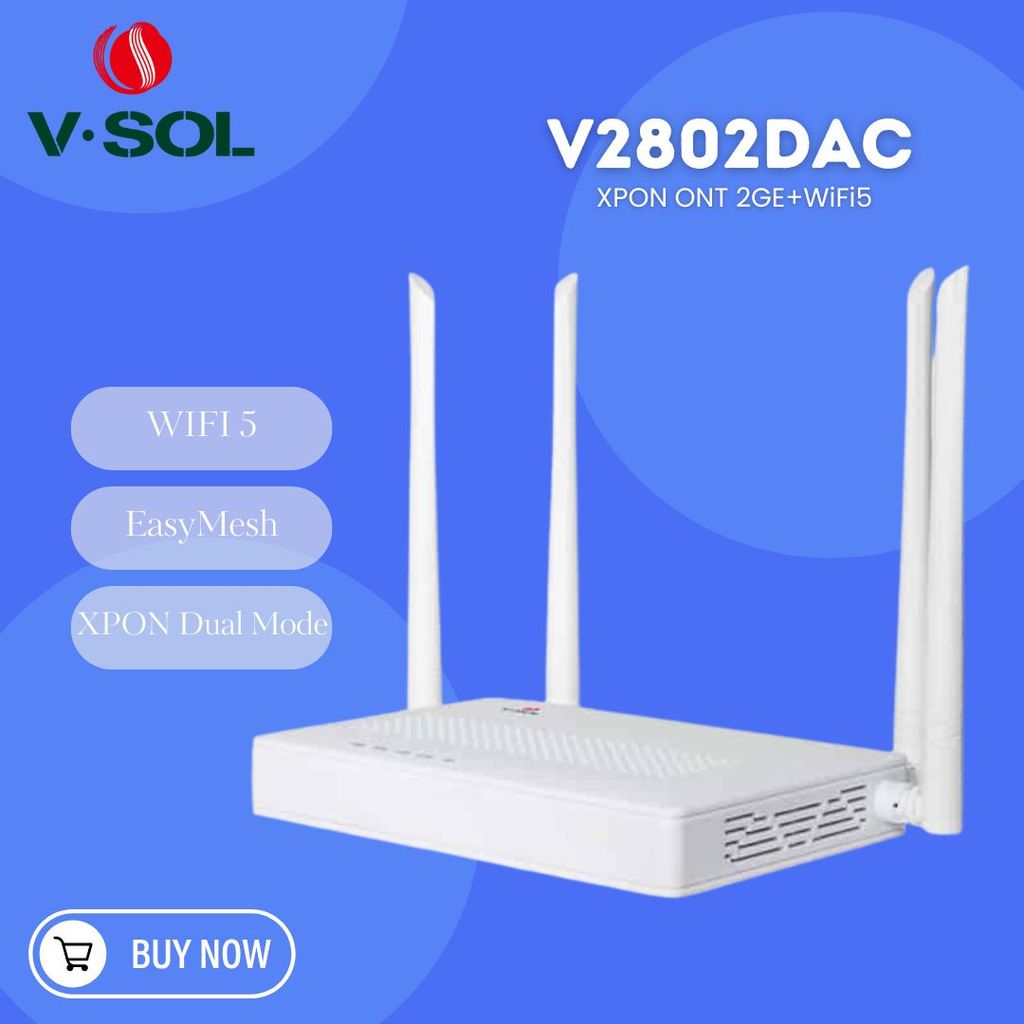

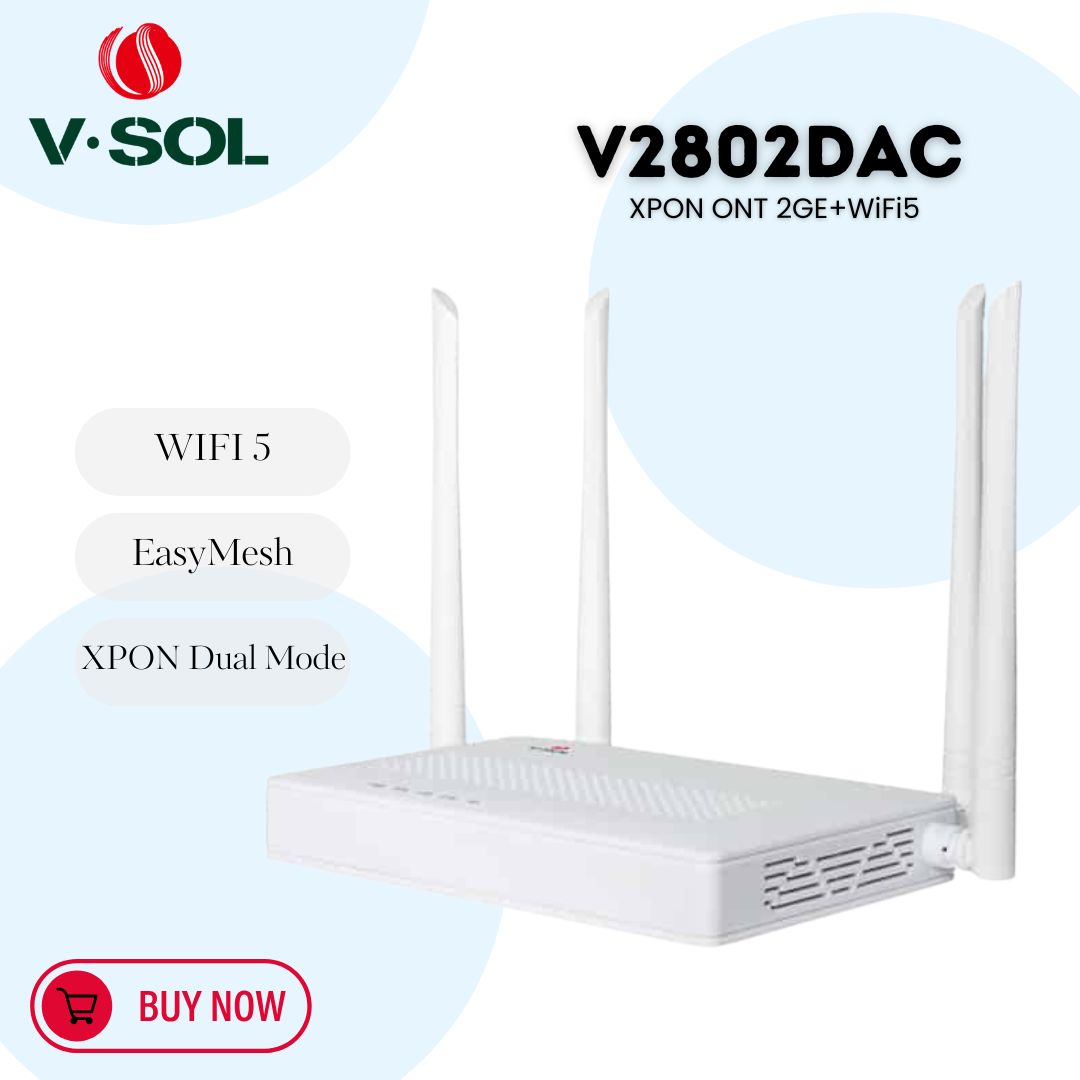

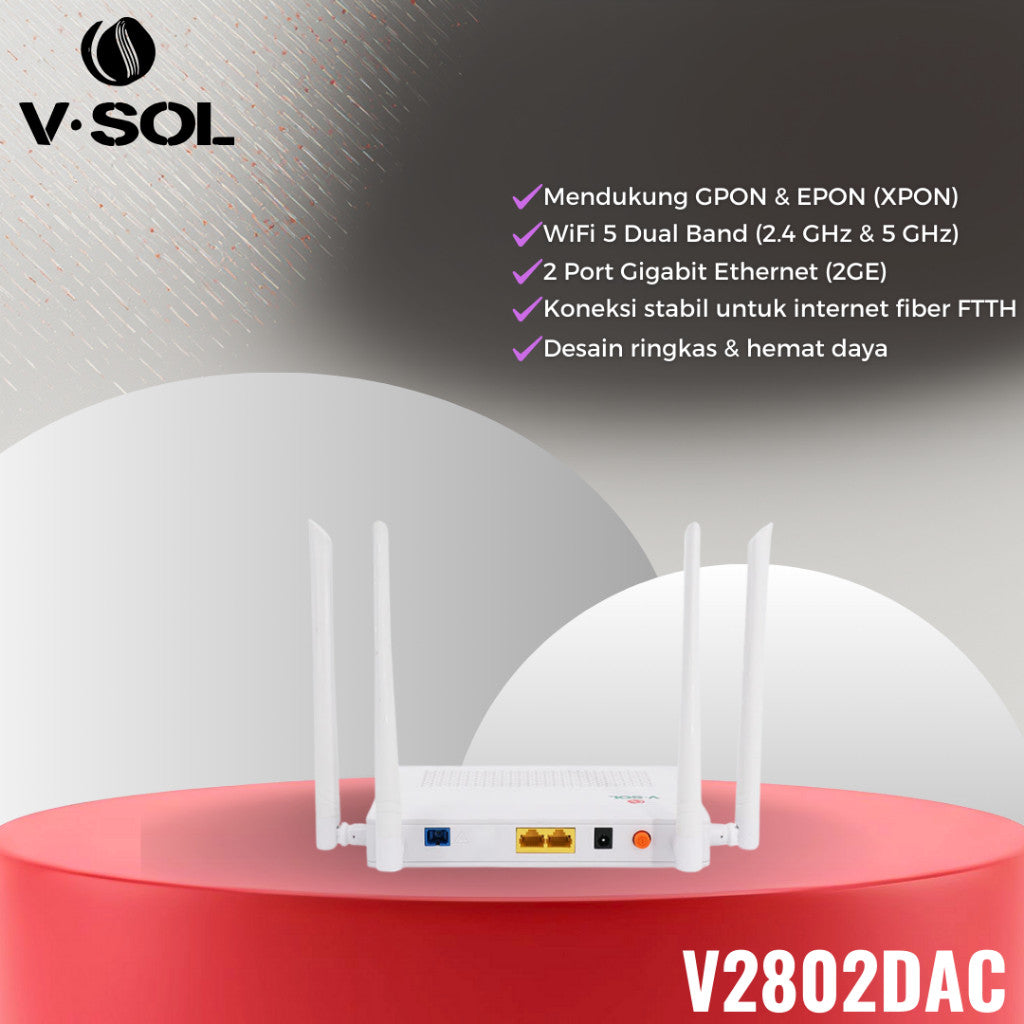

VSOL V2802DAC XPON ONT 2GE+WiFi5
VSOL V2802DAC XPON ONT 2GE+WiFi5
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Hardware Parameter
Dimension 178mm×120mm×30mm(L×W×H)
Net weight 0.31Kg
Operating condition Operating temp: 0 ~ +55°C
Operating humidity: 10 ~ 90% (non-condensed)
Storing condition Storing temp: -30 ~ +60°C
Storing humidity: 10 ~ 90% (non-condensed)
Power adapter DC 12V,1.0A, external AC-DC
power adaptor
Power supply ≤12W
Interface 2GE+WiFi5
Indicators PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G
? Interface parameter
PON interface
1XPON port(EPON PX20+ and GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0~+4dBm
RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or -8dBm (GPON)
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm
User interface 2×GE, Auto-negotiation,RJ45 ports
WLAN interface
Compliant with IEEE802.11b/g/n/ac
2.4GHz Operating frequency: 2.4000-2.4835GHz
5.0GHz Operating frequency: 5.150-5.825GHz
Support MIMO, rate up to 1.167Gbps
WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID
TX power: 11n--22dBm/11ac--24dBm
? Function Data
Management
OAM/OMCI, Telnet, WEB, TR069
Support full management of ONT functions by VSOL OLT
Internet connection Support Bridge, Route and Bridge/Route mixed mode
Multicast
Support IGMP v1/v2/v3
Support IGMP Proxy and MLD Proxy
Support IGMP Snooping and MLD Snooping
VLAN
Support VLAN tag mode
Support VLAN trunk mode
Support VLAN translation
Data Service Functions
Full speed non-blocking switching
2K MAC address table
64 full range VLAN ID
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
Support auto polarity detection of Ethernet ports (AUTO MDIX)
Integrated IEEE802.1p QoS with four level priority queues
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless
Support Wireless AP mode
Support 802.11 b/g/n/ac
Support Multiple SSID
Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM, 256QAM
Support EasyMesh protocol
QoS
Support 4 queues
Support SP and WRR
Support 802.1P and DSCP
L3
Support IPv4, IPv6 and IPv4/IPv6 dual stack
Support DHCP/PPPOE/Static
Support Static route
Support DHCP Server
Support NAT/DMZ/DDNS
Support Virtual Server
Security
Support Firewall
Support Mac filter Based on MAC or URL
Support ACL
