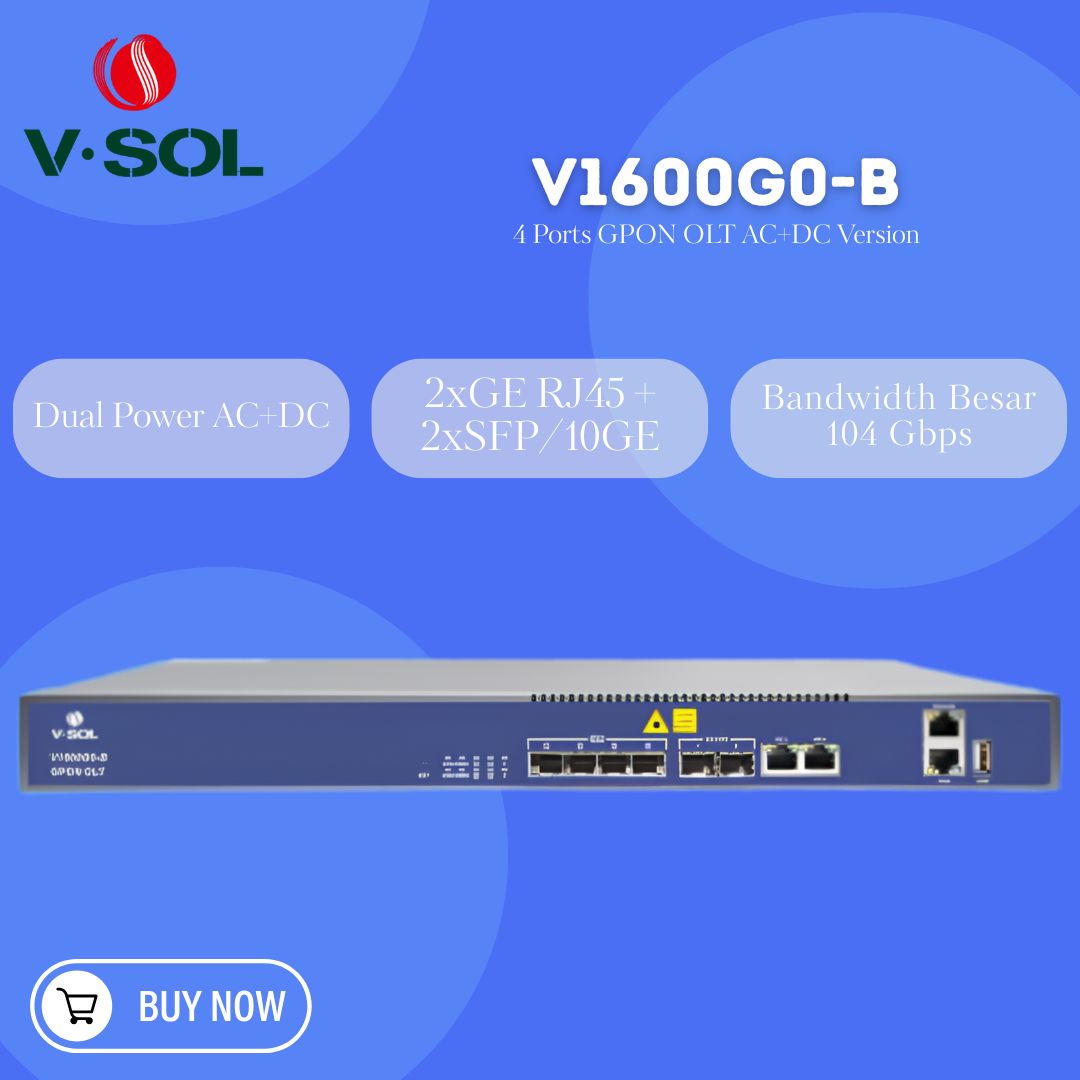

VSOL V1600G0-B 4 Ports GPON OLT AC+DC Version
VSOL V1600G0-B 4 Ports GPON OLT AC+DC Version
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Technical Specifications
Item V1600G0-B
Chassis Rack
1U 19Inch Standard Box
Uplink Port
QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port
QTY 4
Physical Interface
SFP Slots
Max splitting ratio 1:128
Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0
Backplane Bandwidth (Gbps) 104
Port Forwarding Rate(Mpps) 47.616
PON Port Specification
Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125m SMF
Supported PON module level
Class B+, C, C+, C++, C+++
Management Mode EMS, WEB, SNMP, Telnet , CLI
Product Name
Product Description
Power Configuration
Accessories
V1600G0-B
4*GPON, 2*RJ45+2*SFP/SFP+
1*AC power + 1* DC power
GPON SFP C++ module GPON SFP C+++ module 1G SFP module
10G SFP+ module
Description
Description
Technical Specifications
Item V1600G0-B
Chassis Rack
1U 19Inch Standard Box
Uplink Port
QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port
QTY 4
Physical Interface
SFP Slots
Max splitting ratio 1:128
Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLE port, 1*USB2.0
Backplane Bandwidth (Gbps) 104
Port Forwarding Rate(Mpps) 47.616
PON Port Specification
Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125m SMF
Supported PON module level
Class B+, C, C+, C++, C+++
Management Mode EMS, WEB, SNMP, Telnet , CLI
Product Name
Product Description
Power Configuration
Accessories
V1600G0-B
4*GPON, 2*RJ45+2*SFP/SFP+
1*AC power + 1* DC power
GPON SFP C++ module GPON SFP C+++ module 1G SFP module
10G SFP+ module
