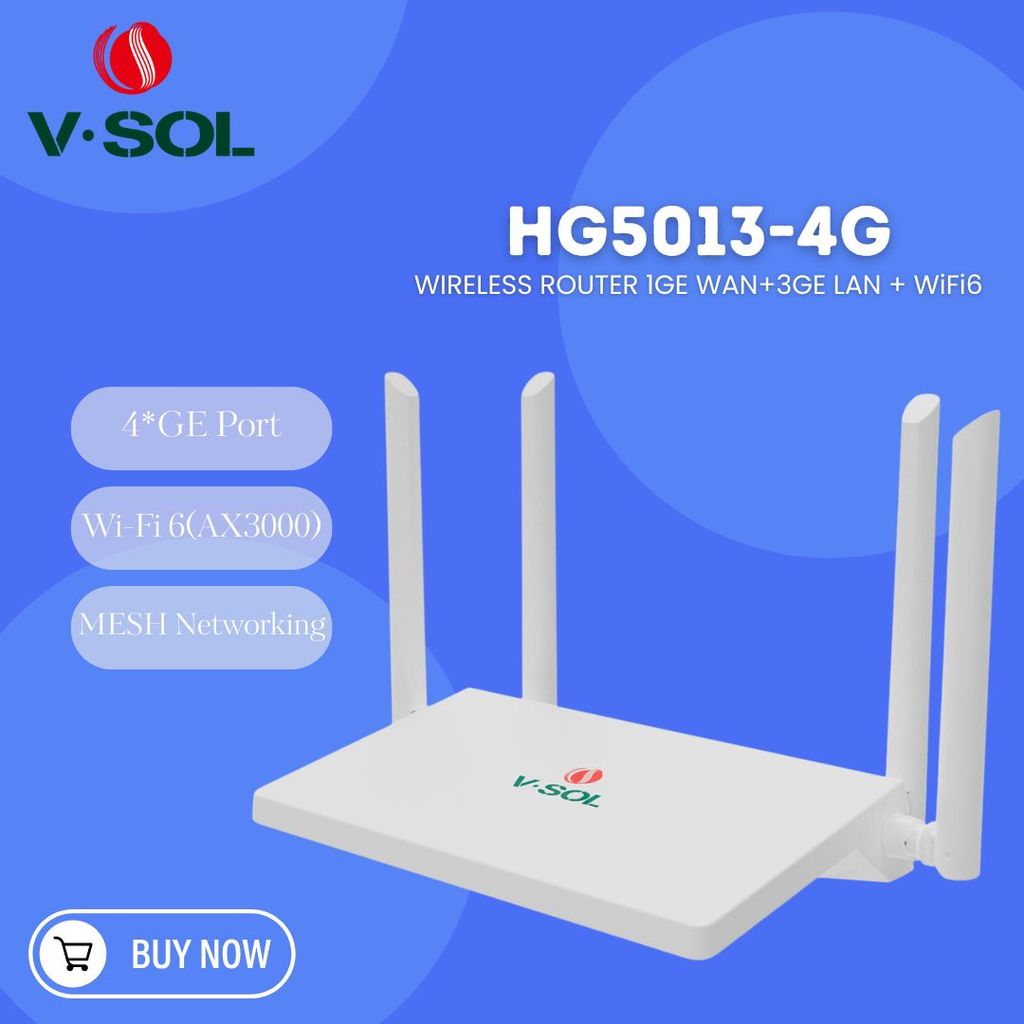

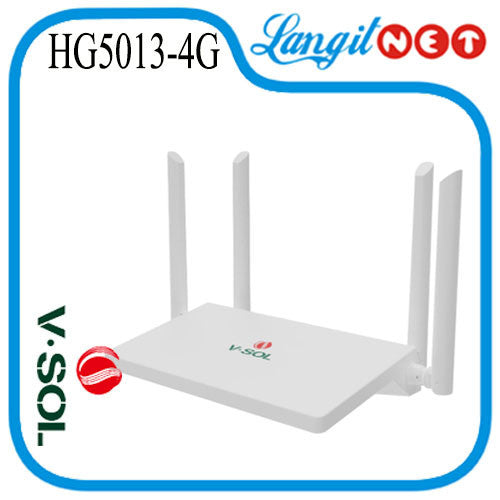

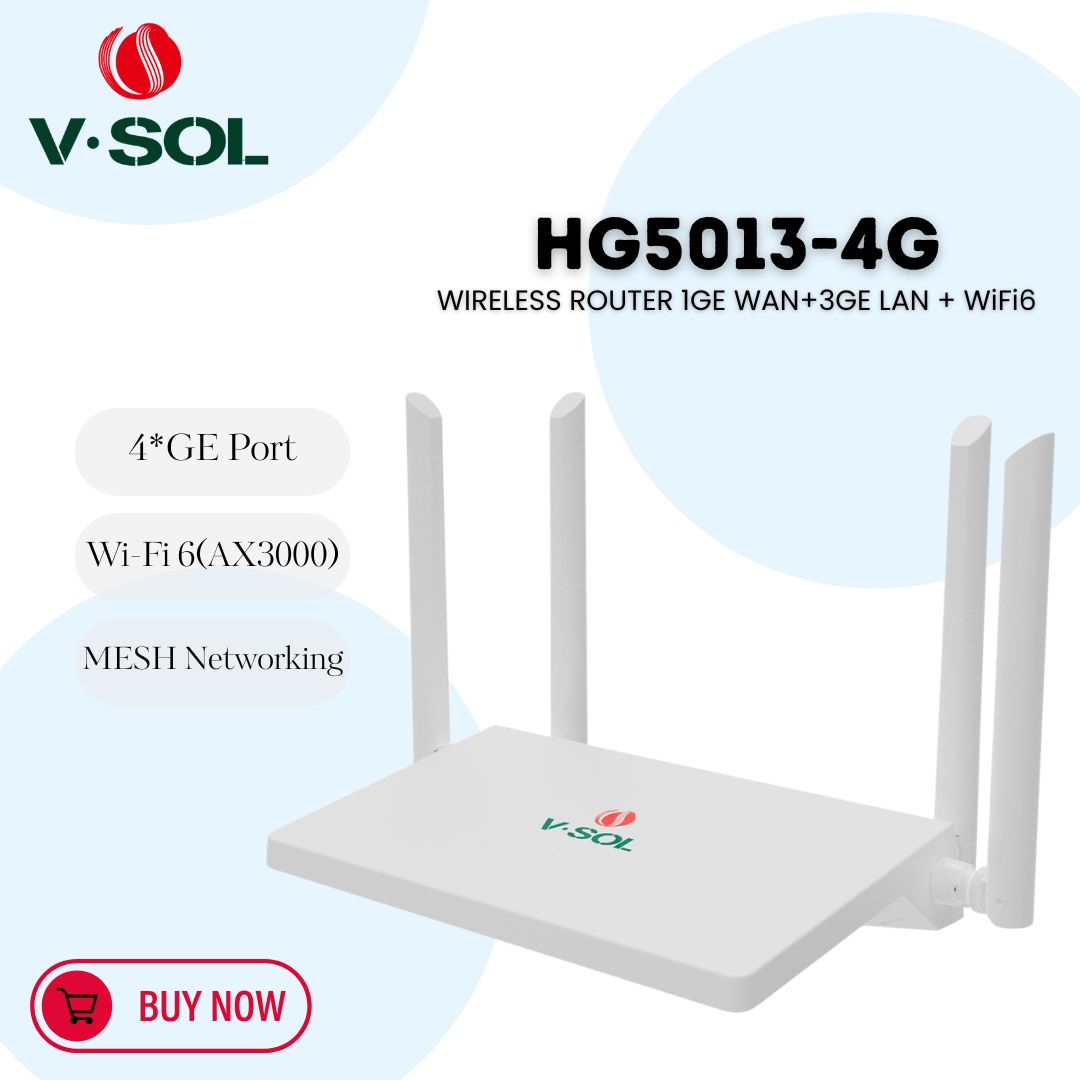

VSOL HG5013-4G 1GE WAN+3GE LAN + WiFi6

Hardware Parameter :

Dimension 179.9mm×104.1mm×30.8mm (L*W*H)

Net weight 185g

Working condition

Working temp: -30~+60°C

Working humidity:5~95%(non-condensing)

Storing condition :

Storing temp: -40~+85°C

Storing humidity:5~ 95% (non-condensing)

Power adapter : DC 12V, 1A

Power supply :  ≤12W

Interface : 1GE WAN+3GE LAN + WiFi6

Indicators : SYS

Button : Reset/WP

Interface  Parameter :

User Interface : 4*10/100/1000Mbps auto adaptive Ethernet interface , RJ45 connectors(1*WAN, 3*LAN)

WLAN Interface :

- Compliant with IEEE802.11b/g/n/ac/ax

- 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz

- 2.4GHz: 2*2(3dBi), 5GHz: 2*2(5dBi);External antennas

- Maximum number of connected devices:128

Function Data:

WAN Maximum speed of 1Gbps

Wireless

- Wi-Fi 6: 802.11a/n/ac/ax 5GHz &

802.11b/g/n/ax 2.4GHz

- WiFi Encryption:WEP-64/WEP-128/

WPA/WPA2/WPA3

- Support MU-MIMO & OFDMA

- Support Dynamic QoS

- Support 1024-QAM

- Support WMM

- BSS-Coloring&Beamforming&Beamsteering

- Support WIFI Easy-mesh function L3/L4

- Support IPv4, IPv6 and IPv4/IPv6 dual stack

- Support DHCP/PPPOE/Statics

- Support Static route,NAT

- Support DMZ, ALG,UPnP

- Support Virtual Server

- Support NTP (Network Time Protocol)

- Support DNS Client and DNS Proxy

DHCP Support DHCP Server & DHCP Relay

Security

- Support local access control

- Support IP address filtering

- Support URL filtering

- Support Anti-DDoS attack function

- Support Anti-port scanning function

- Suppression of protocol-specific broadcast/multicast packets (e.g. DHCP,

ARP, IGMP, etc.)

- Support Anti-Intranet ARP Attack

- Support Parental control function

Management WEB/Telnet/TR-069/SSH/CLI Management

Multicast

- Support IGMP Snooping(IGMPv1/v2/v3)

- Support IGMP Proxy

- Support MLD Snooping(MLDv1?MLDv2)

- Support MLD Proxy

- Support Fast leav
