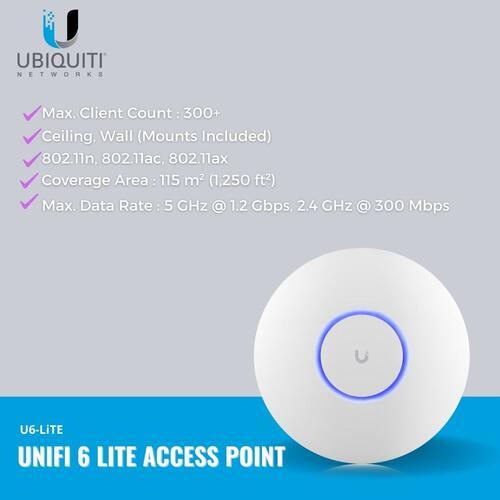

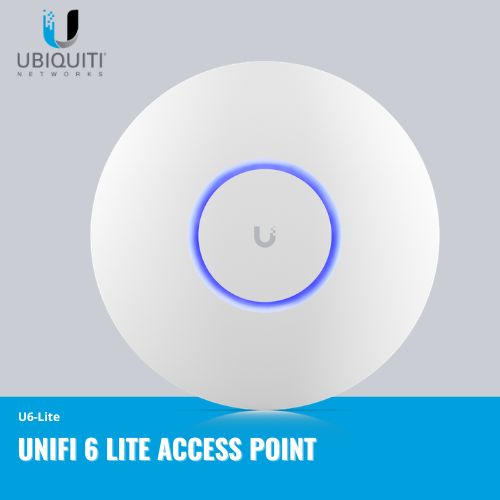

UBIQUITI UniFi 6 Lite Access Point

(Not Include Adaptor)

Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.

UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

Features:

2x2 high-efficiency Wi-Fi 6

5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps

2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps

Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)

Compatible with UAP-nanoHD covers and recessed mounting bracket

Managed by UniFi Network Controller version: 5.14.3 or higher

Processor Specs 880 MHz MIPS 1004 KEc

Memory Information 256 MB

Management Interface Ethernet In-Band

Networking Interface (1) 10/100/1000 Mbps Ethernet RJ45

Buttons Factory Reset

LEDs White/Blue

Power Method 802.3af PoE, Passive PoE (48V)

Power Supply 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)

Supported Voltage Range 44 to 57VDC

Max. Power Consumption 12W

Max. TX Power

2.4GHz

5GHz

23 dBm

23 dBm

MIMO

2.4GHz

5GHz

2 x 2

2 x 2

Throughput Speeds

2.4GHz

5GHz

300 Mbps

1201 Mbps

Antenna Gain

2.4GHz

5GHz

2.8 dBi

3 dBi

Package Contents :

- UniFi 6 Lite Access Point

-  Celling / Wall Mounting kit

- Screw Kit

- Release Tool
