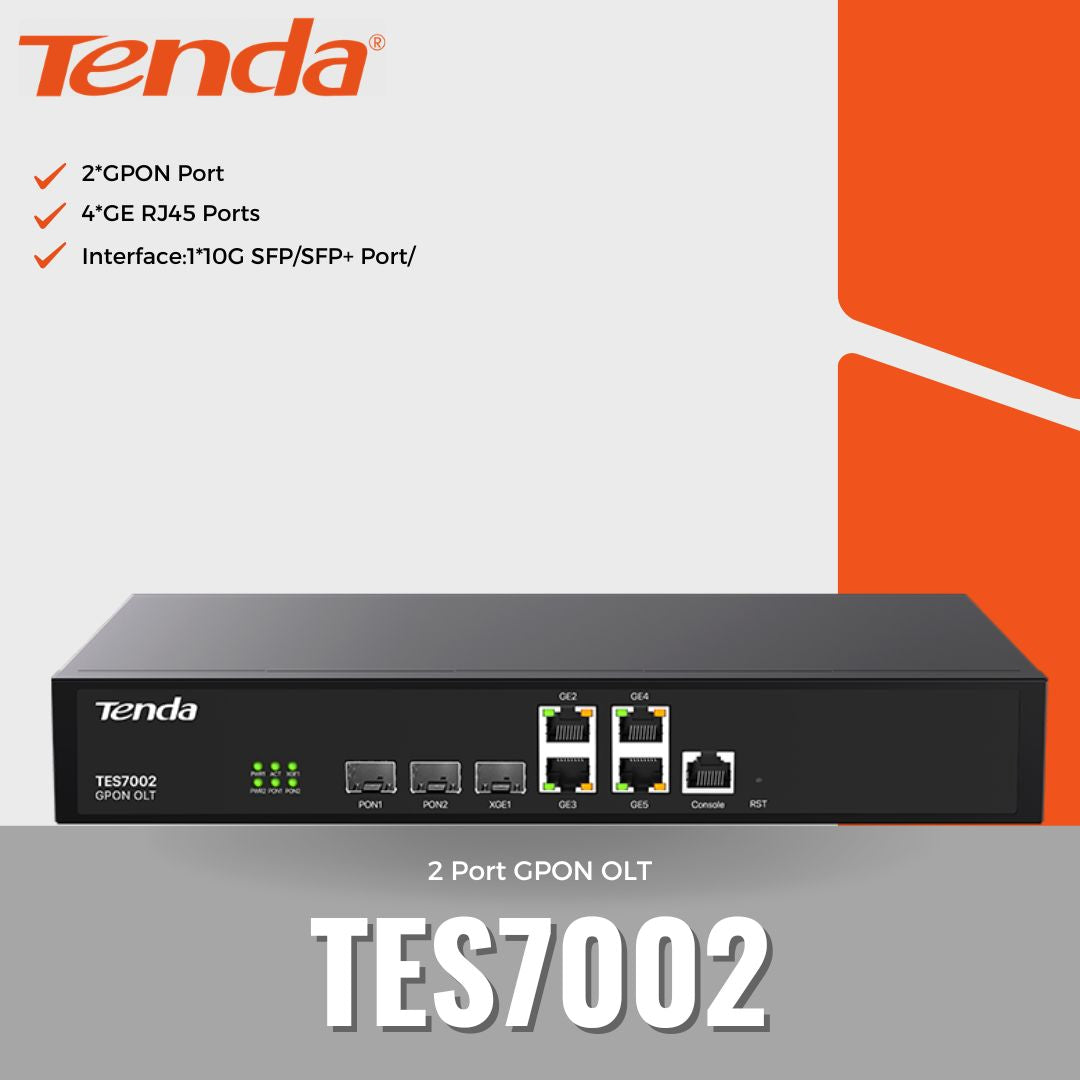

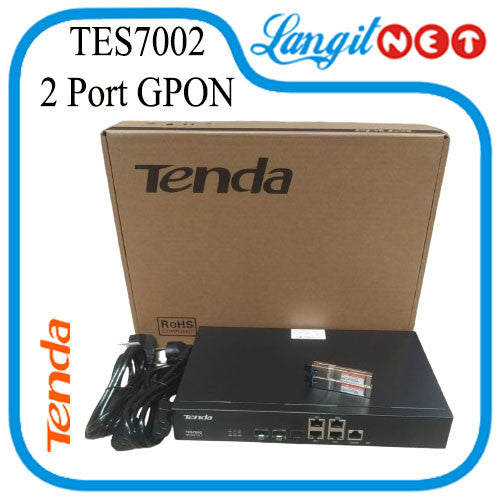

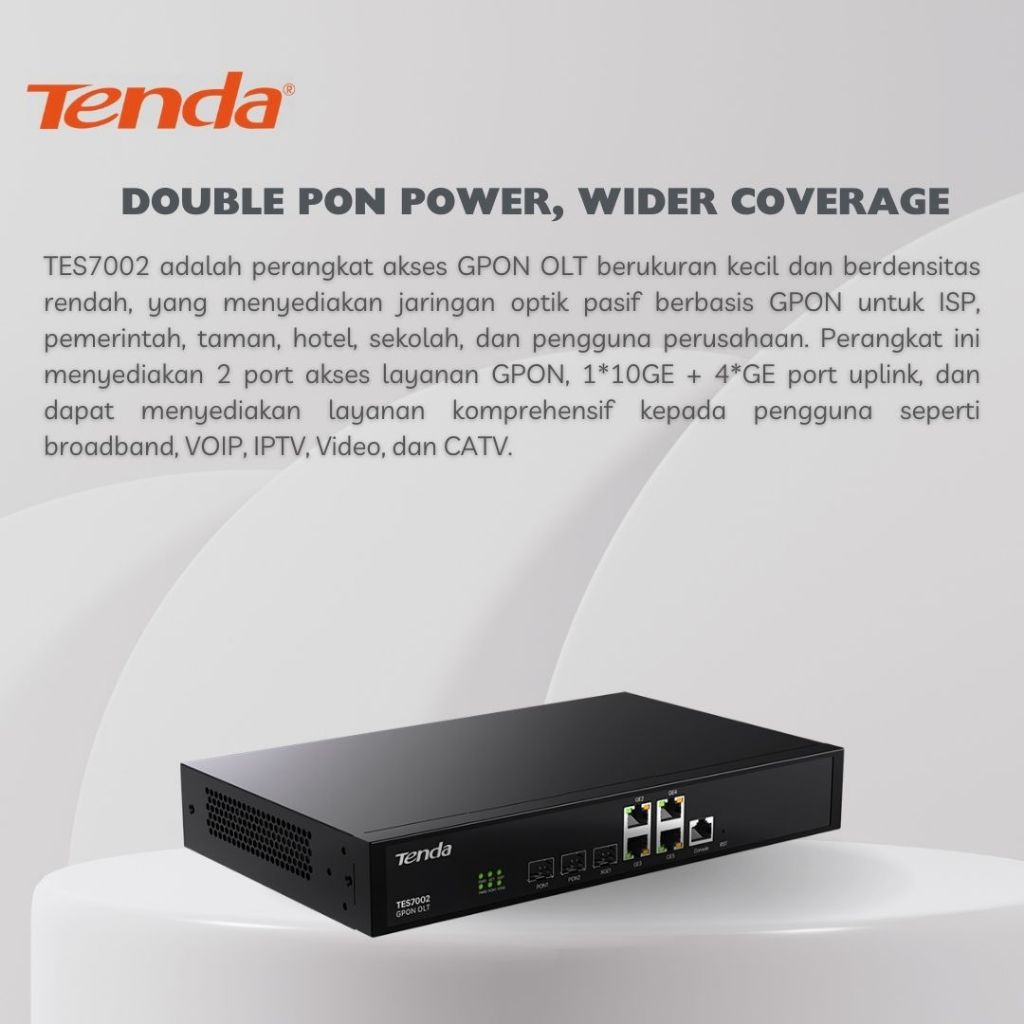

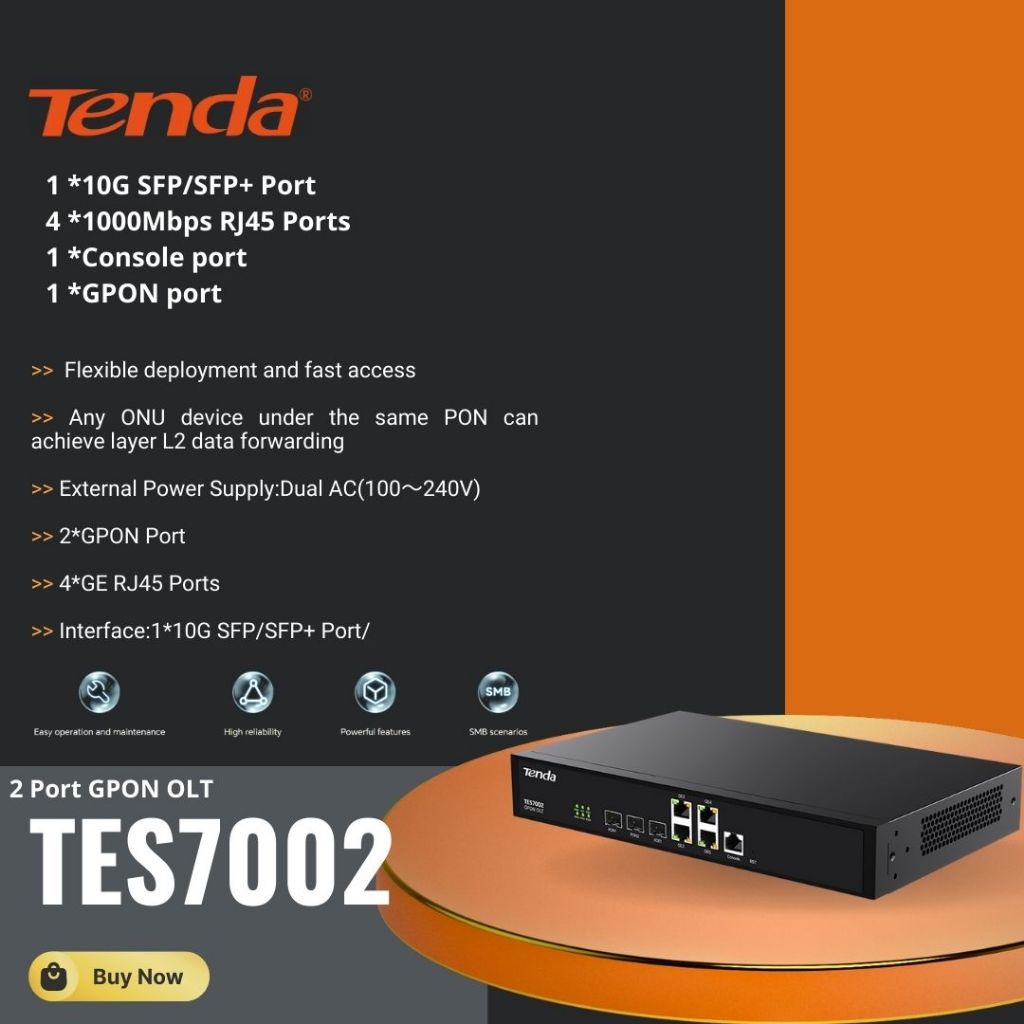

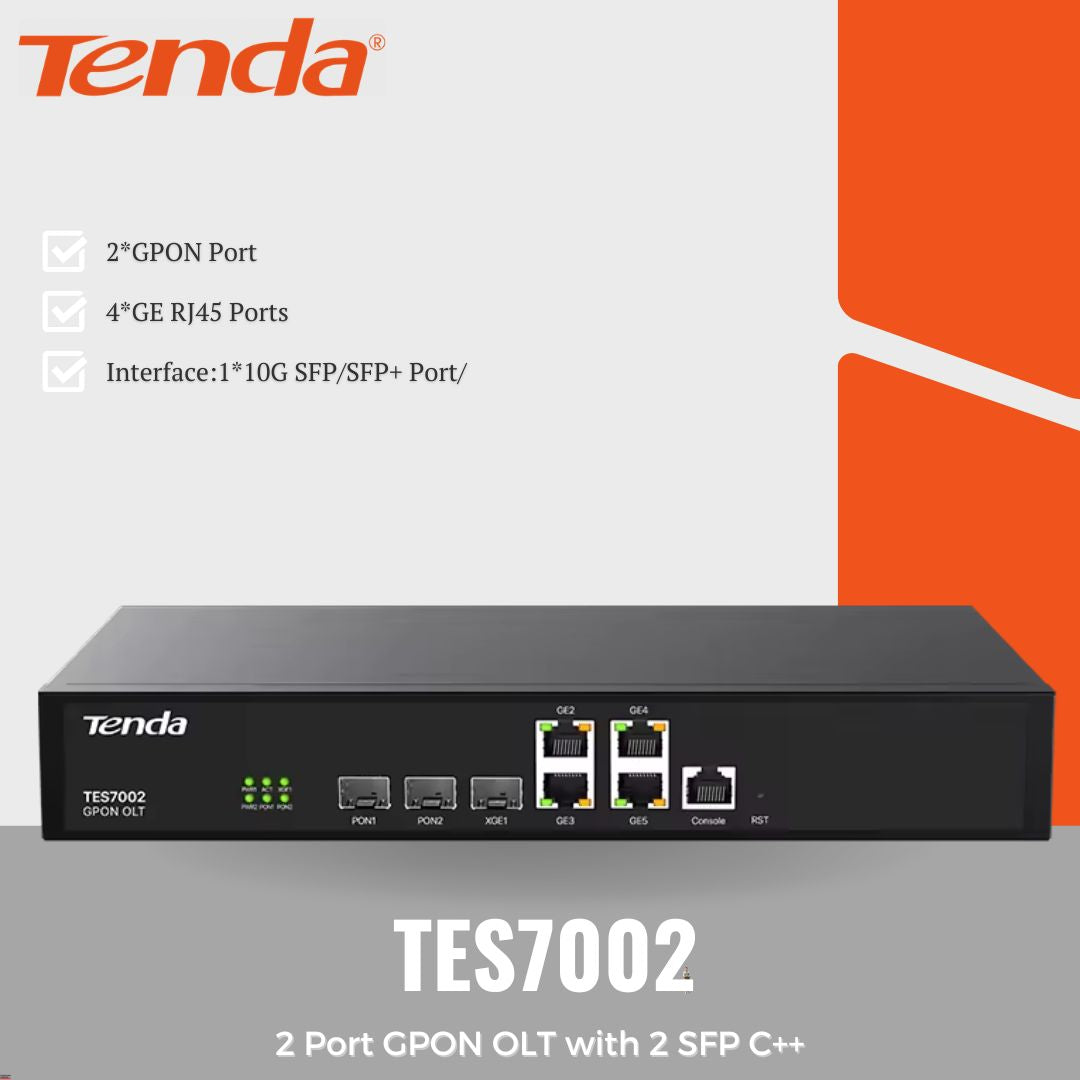

TENDA TES7002 2 Port GPON OLT with 2 SFP C++
TENDA TES7002 2 Port GPON OLT with 2 SFP C++
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Standards ITU G.984.x, ITU G.988
Uplink 1 *10G SFP/SFP+ Port
4 *1000Mbps RJ45 Ports
1 *Console port
GPON Port 2 *GPON Ports
LED 2 *PWR
1 *ACT
2 *PON
1 *XGE
Button 1 *RST Button
Optical Mode Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++
Optical Wavelength TX 1490nm, RX 1310nm
Transmission Distance 20km Max
Bandwidth Upstream 1.244Gbps , Downstream 2.488Gbps
ONU Access NUM 256
Dimensions (L×W×H) 294 *180 *44mm
External Power Supply Dual AC (100~240V )
Power Consumption ≤18W
Certification CE, RoHS
MAC address 4K
VLAN Support 512 concurrent VLAN
Support VLAN Transparent/Tag/Trunk mode
IGMP Support IGMPV2/IGMPV3
Support IGMP SNOOPING
Support Concurrent 512 multicast groups
Loop Detection Support Loopback
Port Rate Limit Support Port Rate Limit
Port Mirro Support Port Mirror
Flowcontrol IEEE802.X flowcontrol
Port Statistic Support Port Statistic And Monitoring
DBA Support Tcont DBA
Min configration bandwidth is 128kbit/s ,the particle is for 64kbit/s
Effecient Configuration Provide batch configuring ONT template, support DBA, VLAN, PoE
System Management Standard OMCI management function
Support in-band management
Support CLI, Web network management
Support batch ONT remote upgrade
Optical power detection Support Uplink port optical parameter detection
Support PON port optical parameter detection
Support batch ONT optical parameter detection
Redundant Backup Supports dual power redundancy backup, the dual mirroring software and configure
Link Monitor Network management supports monitoring optical link index
Network management supports data flow statistics of all service ports
Support auto alarm when link index degrades
Long-duration luminescence ONT detection
Description
Description
Standards ITU G.984.x, ITU G.988
Uplink 1 *10G SFP/SFP+ Port
4 *1000Mbps RJ45 Ports
1 *Console port
GPON Port 2 *GPON Ports
LED 2 *PWR
1 *ACT
2 *PON
1 *XGE
Button 1 *RST Button
Optical Mode Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++
Optical Wavelength TX 1490nm, RX 1310nm
Transmission Distance 20km Max
Bandwidth Upstream 1.244Gbps , Downstream 2.488Gbps
ONU Access NUM 256
Dimensions (L×W×H) 294 *180 *44mm
External Power Supply Dual AC (100~240V )
Power Consumption ≤18W
Certification CE, RoHS
MAC address 4K
VLAN Support 512 concurrent VLAN
Support VLAN Transparent/Tag/Trunk mode
IGMP Support IGMPV2/IGMPV3
Support IGMP SNOOPING
Support Concurrent 512 multicast groups
Loop Detection Support Loopback
Port Rate Limit Support Port Rate Limit
Port Mirro Support Port Mirror
Flowcontrol IEEE802.X flowcontrol
Port Statistic Support Port Statistic And Monitoring
DBA Support Tcont DBA
Min configration bandwidth is 128kbit/s ,the particle is for 64kbit/s
Effecient Configuration Provide batch configuring ONT template, support DBA, VLAN, PoE
System Management Standard OMCI management function
Support in-band management
Support CLI, Web network management
Support batch ONT remote upgrade
Optical power detection Support Uplink port optical parameter detection
Support PON port optical parameter detection
Support batch ONT optical parameter detection
Redundant Backup Supports dual power redundancy backup, the dual mirroring software and configure
Link Monitor Network management supports monitoring optical link index
Network management supports data flow statistics of all service ports
Support auto alarm when link index degrades
Long-duration luminescence ONT detection
