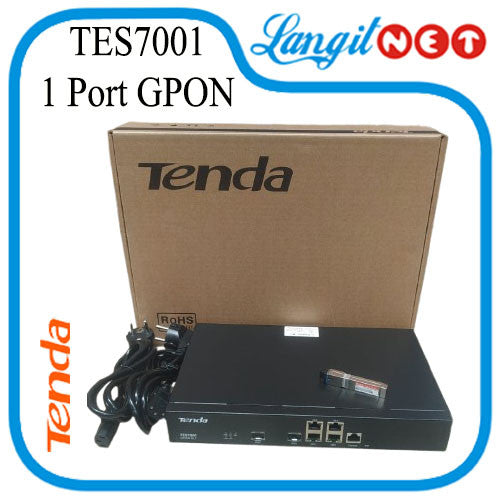

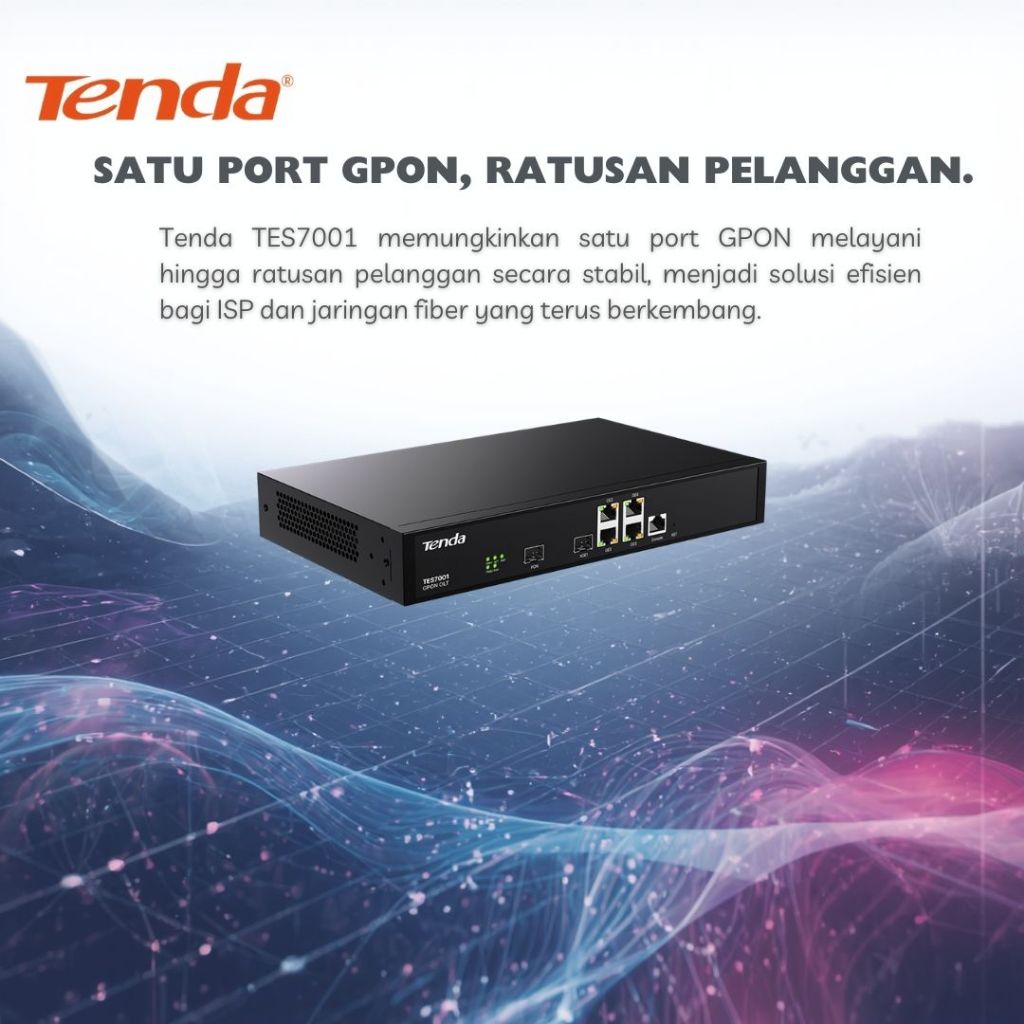

TENDA TES7001 Single Port GPON OLT with 1 SFP C++

Standards

ITU G.984.x, ITU G.988

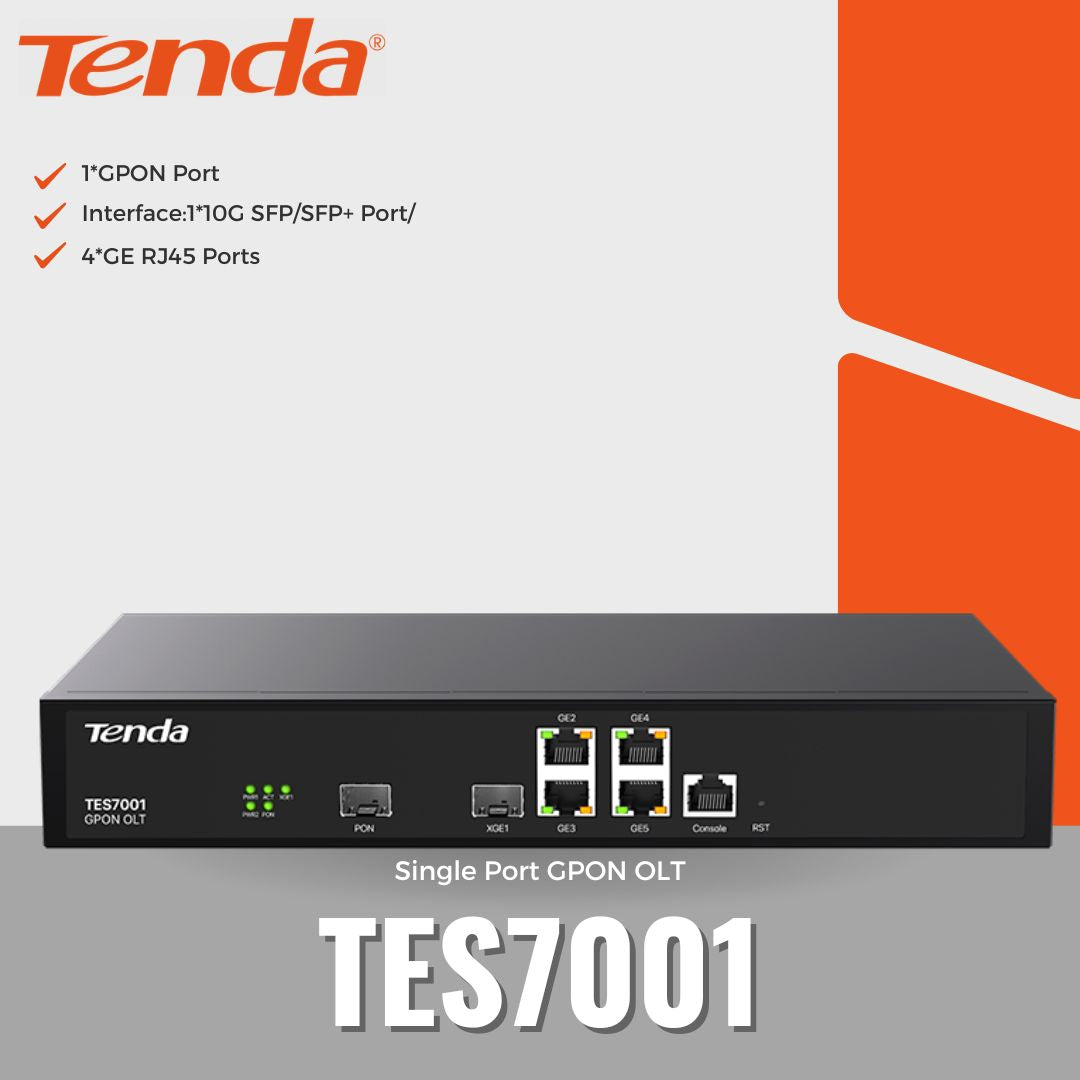

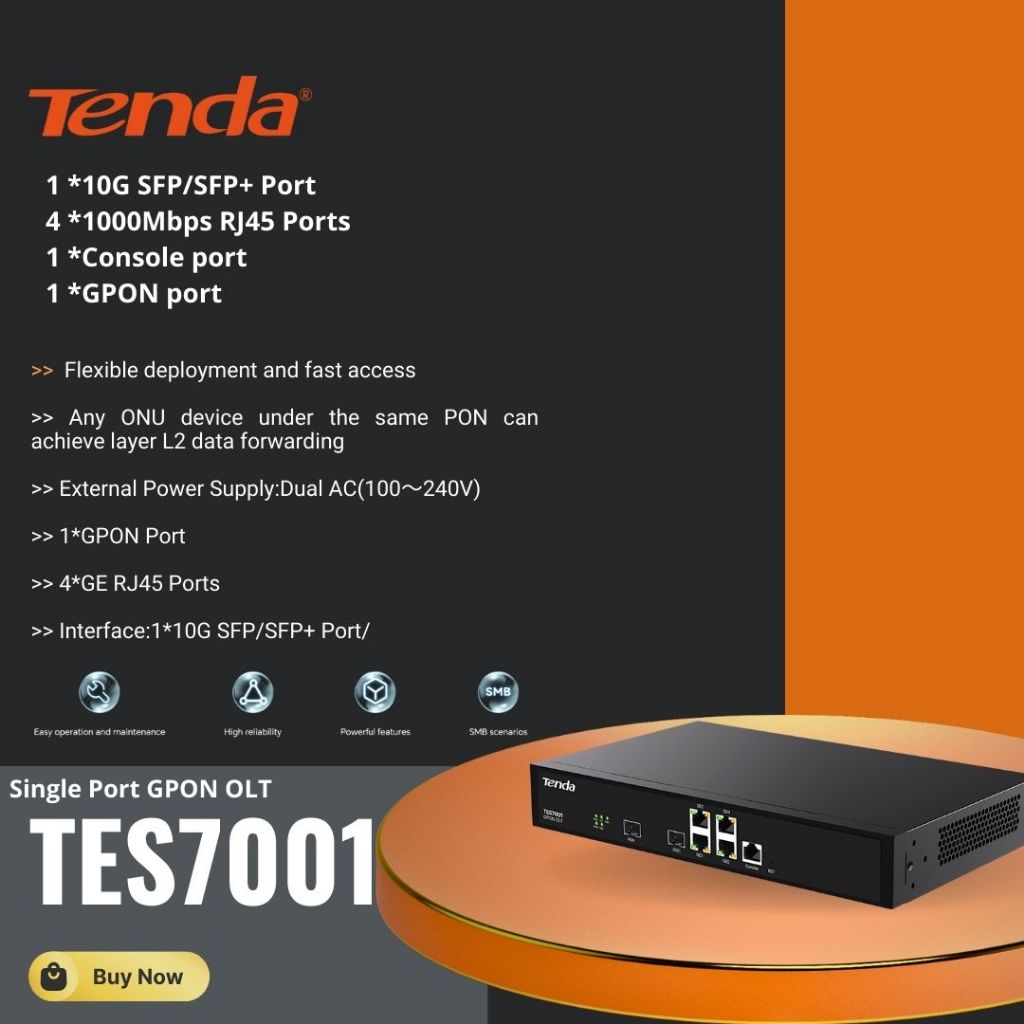

Uplink

1 *10G SFP/SFP+ Port

4 *1000Mbps RJ45 Ports

1 *Console port

GPON Port

1 *GPON port

LED

2 *PWR

1 *ACT

1 *PON

1 *XGE

Button

1 *RST Button

Optical Mode

Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++

Optical Wavelength

TX 1490nm, RX 1310nm

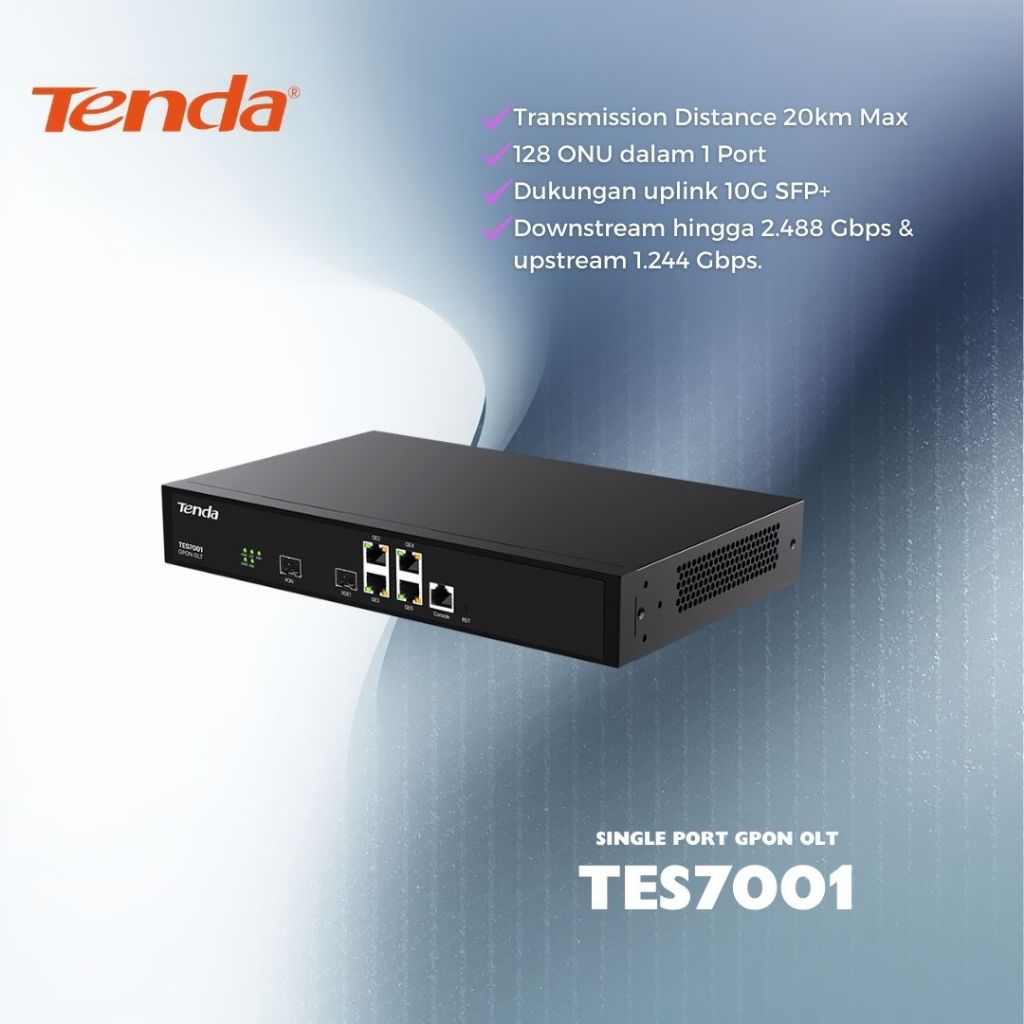

Transmission Distance

20km Max

Bandwidth

Upstream 1.244Gbps , Downstream 2.488Gbps

ONU Access NUM

128

Dimensions (L×W×H)

294 *180 *44mm

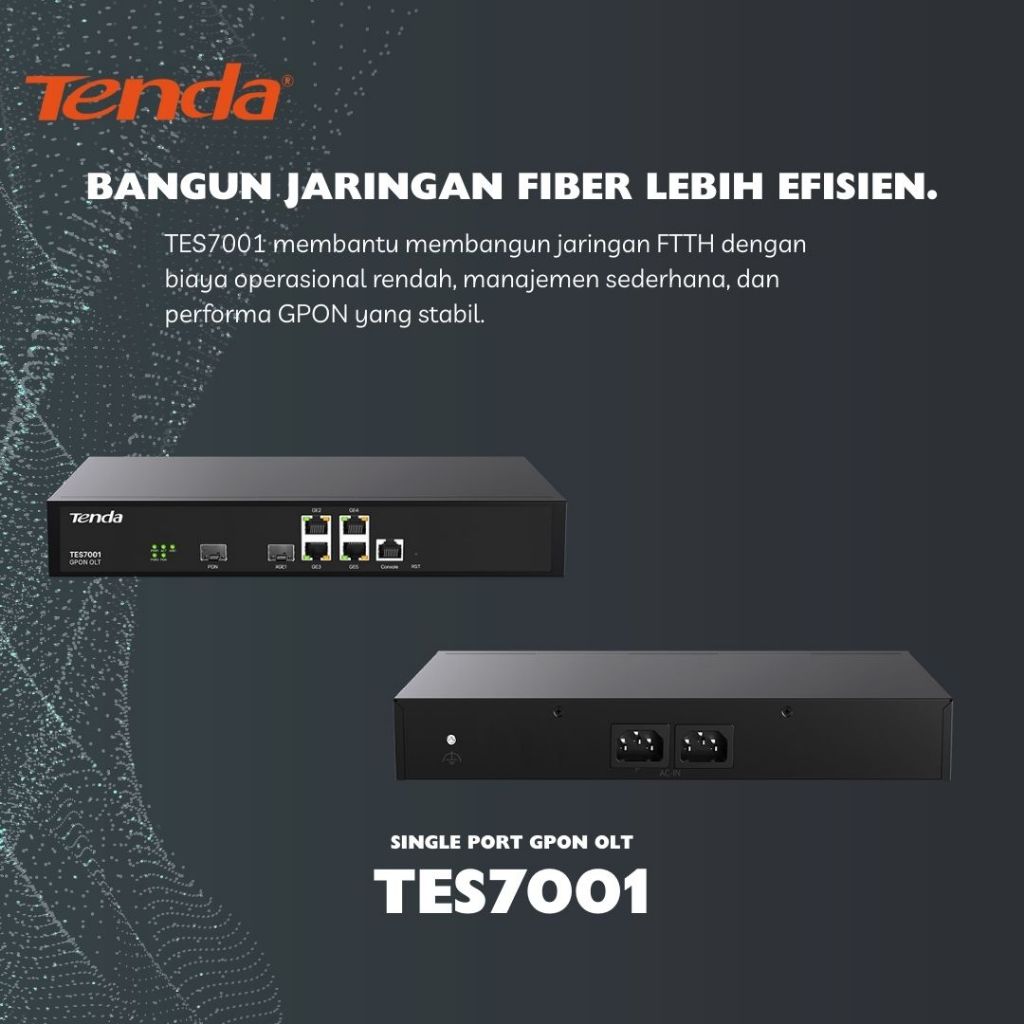

External Power Supply

Dual AC (100~240V )

Power Consumption

≤13W

Certification

CE, RoHS

Software

Funtions

-

PON Features

-

Ports

-

DHCP Server

-

MAC address

4K

VLAN

Support 512 concurrent VLAN

Support VLAN Transparent/Tag/Trunk mode

IGMP

Support IGMPV2/IGMPV3

Support IGMP SNOOPING

Support Concurrent 512 multicast groups

ACL

-

QOS

-

Link Aggregation

-

Loop Detection

Support Loopback

Port Rate Limit

Support Port Rate Limit

Port Mirro

Support Port Mirror

Flowcontrol

IEEE802.X flowcontrol

Port Statistic

Support Port Statistic And Monitoring

DBA

Support Tcont DBA

Min configration bandwidth is 128kbit/s , the particle is for 64kbit/s

Effecient Configuration

Provide batch configuring ONT template, support DBA, VLAN, PoE

System Management

Standard OMCI management function

Support in-band management

Support CLI, Web network management

Support batch ONT remote upgrade

Optical power detection

Support Uplink port optical parameter detection

Support PON port optical parameter detection

Support batch ONT optical parameter detection

Redundant Backup

Supports dual power redundancy backup, the dual mirroring software and configure

Link Monitor

Network management supports monitoring optical link index

Network management supports data flow statistics of all service ports

Support auto alarm when link index degrades
