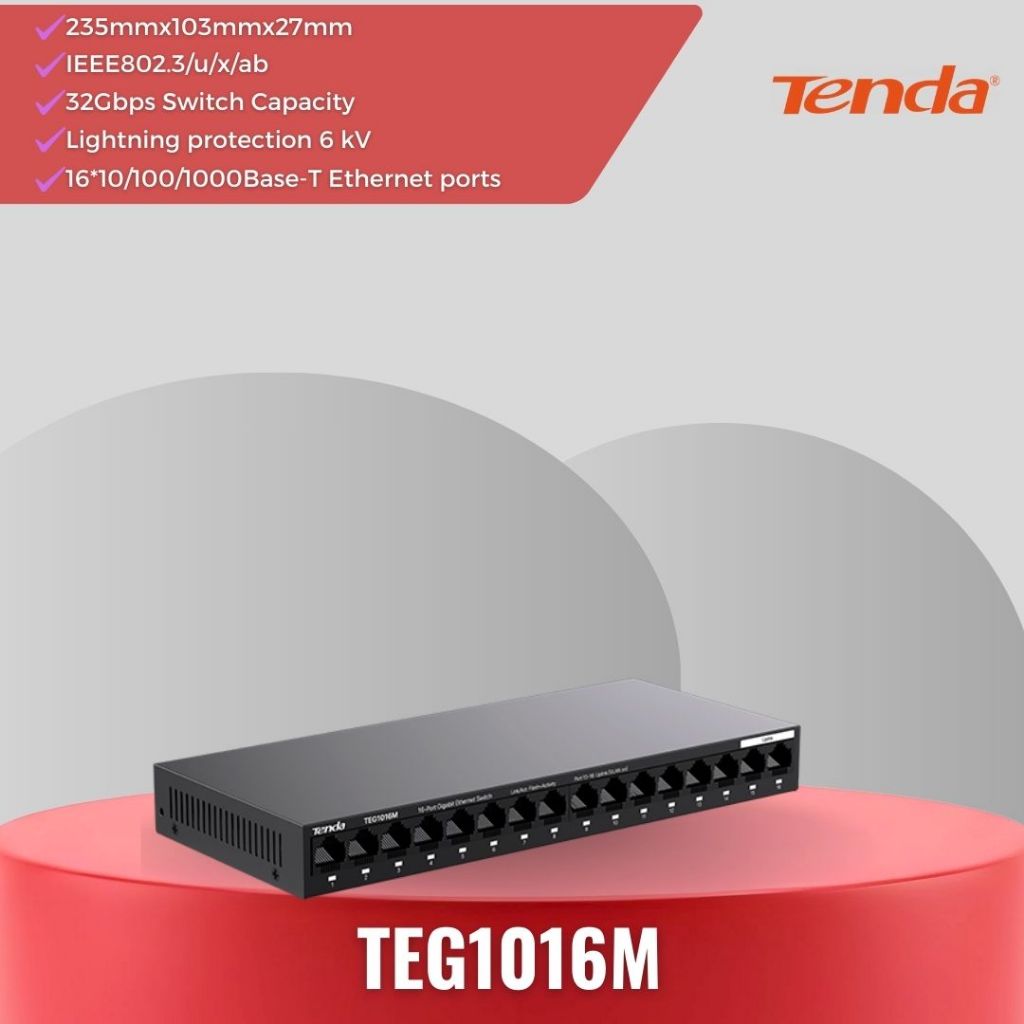

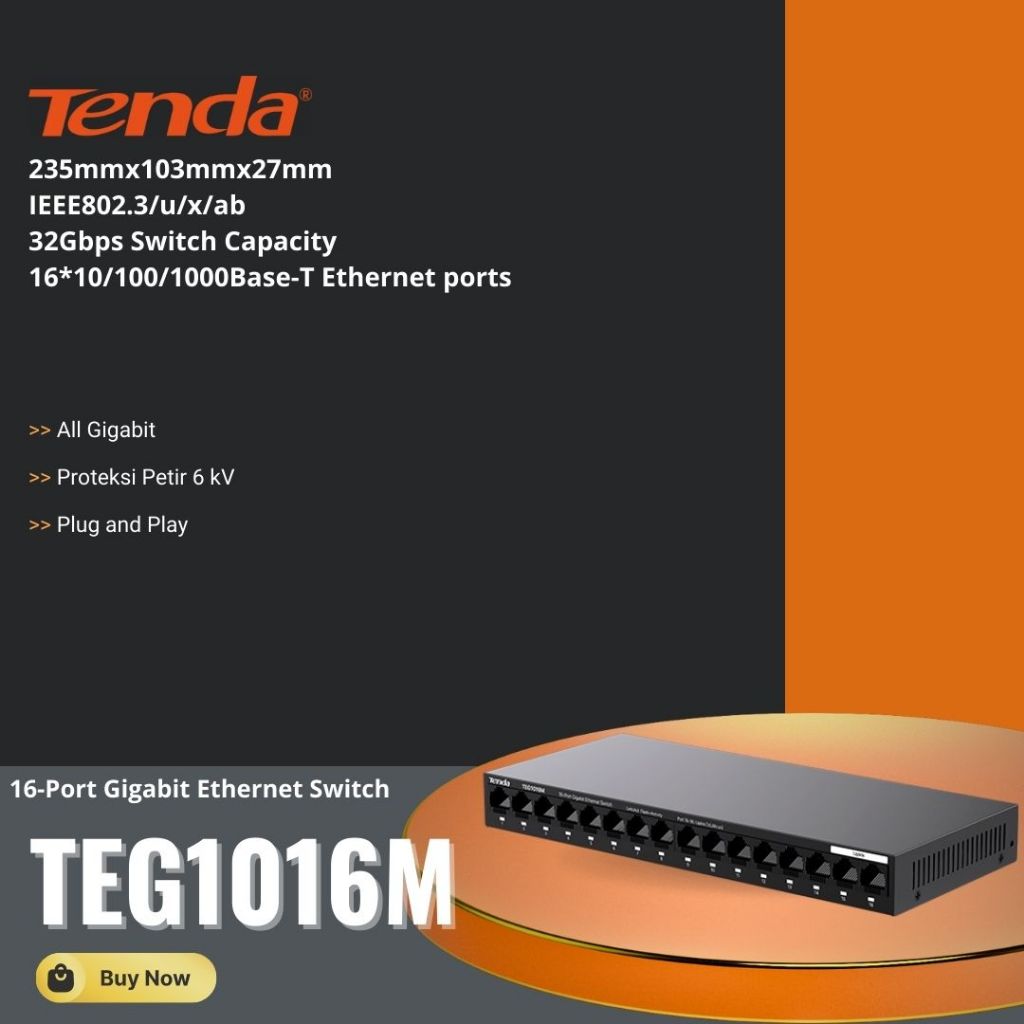

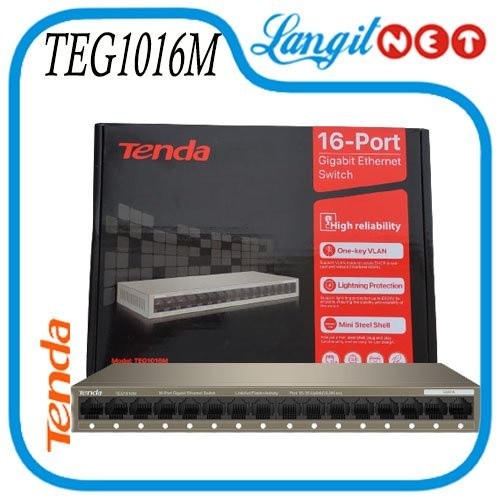

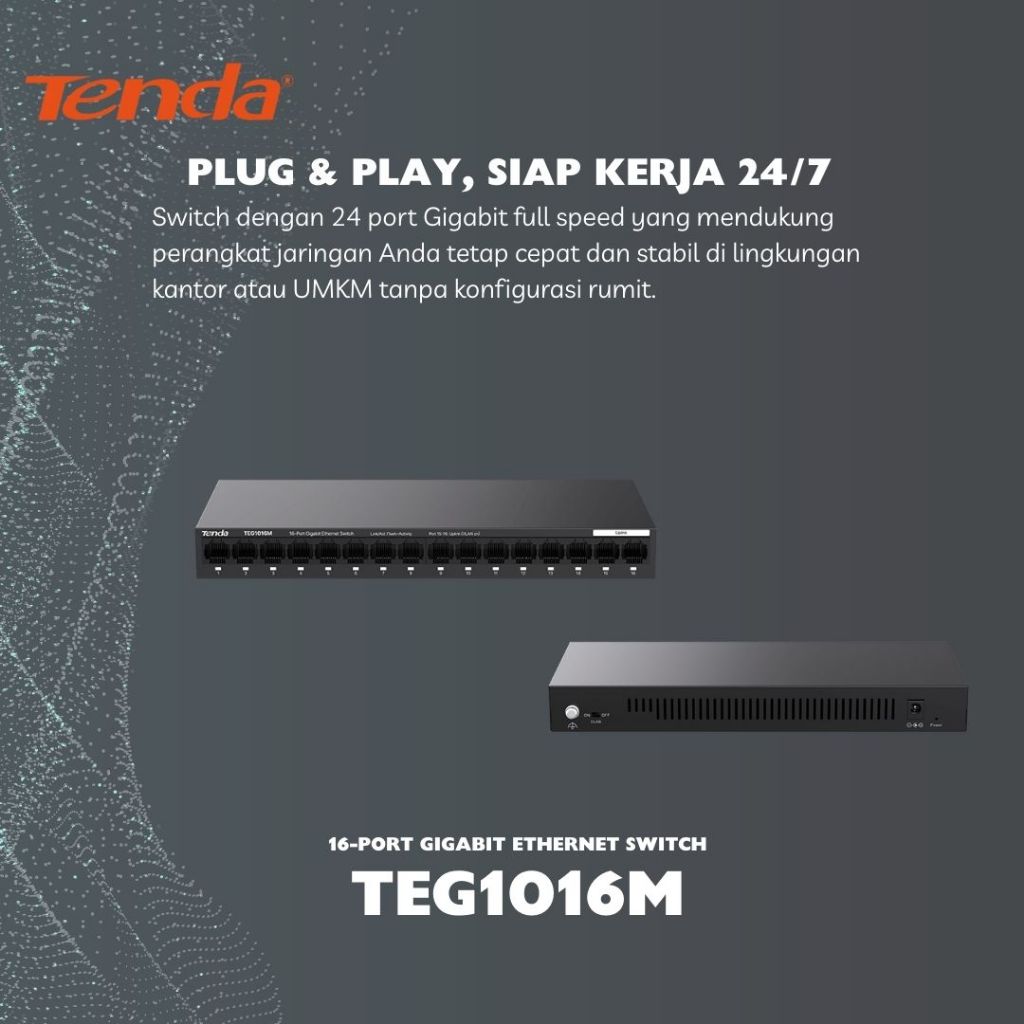

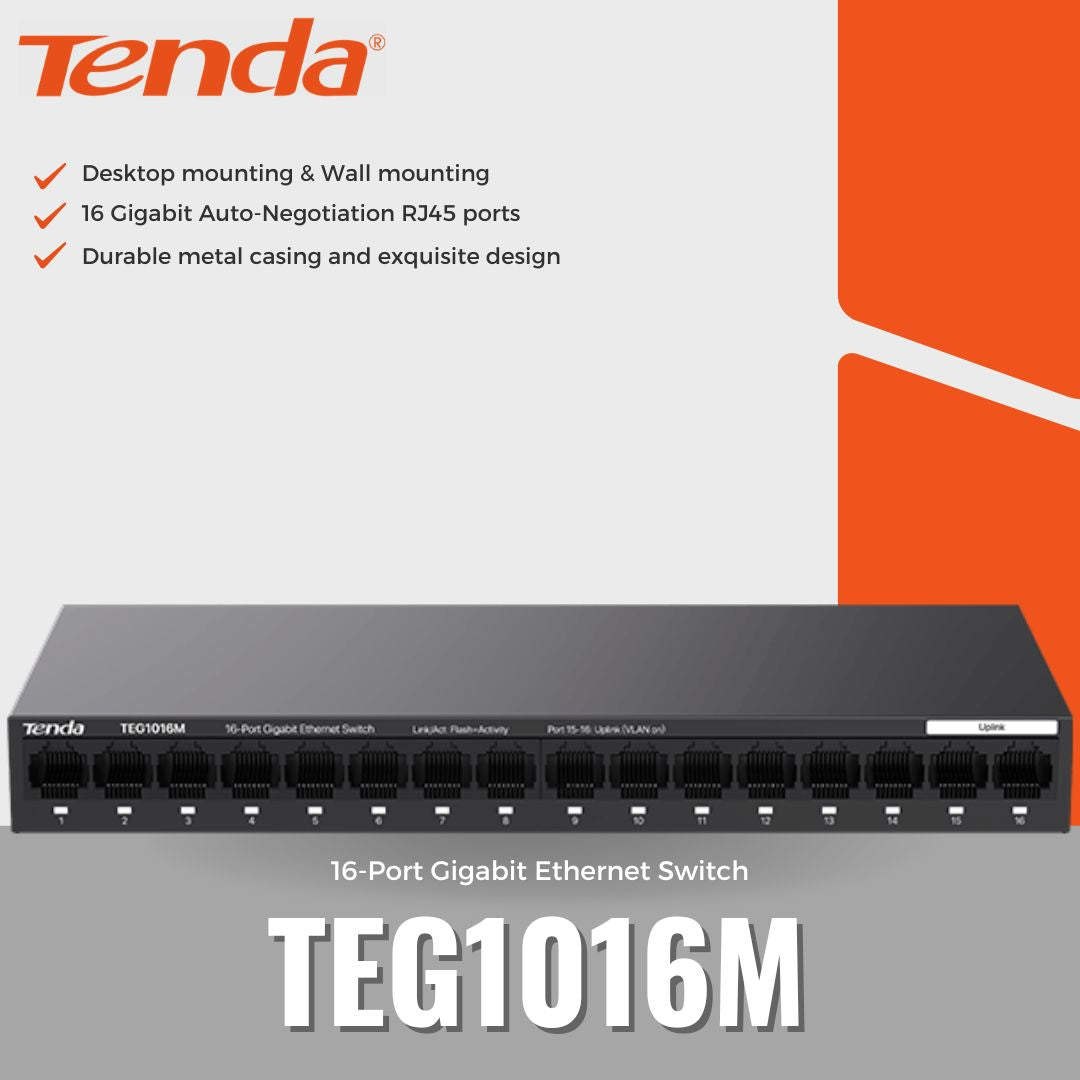

TENDA TEG1016M SWITCH HUB 16 PORT GIGABIT
TENDA TEG1016M SWITCH HUB 16 PORT GIGABIT
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Hardware :
Network standards :
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator :
One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces :
16*10/100/1000Base-T Ethernet ports
Transmission media :
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fan quantity :
-
Dimension :235mmx103mmx27mm
Material : Metal
Level of protection :
Lightning protection for port: 6 kV
Lightning protection for power: N/A
Electrostatic protection:
-Air discharge: 8 kV
-Contact discharge: 6 kV
Forwarding mode : Store-and-forward
Switch capacity : 32Gbps
Packet forwarding rate : 23.8Mpps
Buffer : 2Mb
MAC address table : 8K
Jombo frame :10K
Power :
Input: 100 - 240V AC 50/60Hz, 0.4A
Output: 12V 1A
Power consumption : Max: <12 W
Mounting :
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment :
Operating temperature: 0C - 45?
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification : CE, FCC, RoHS
Software :
Protocols : CDMA/CD
MAC address learning : Auto-learning and Auto-Updating
Funtions :
One-key VLAN (In this mode, ports 1 to 14 cannot communicate with each other, but can communicate with ports 15 to 16.)
Description
Description
Hardware :
Network standards :
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator :
One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces :
16*10/100/1000Base-T Ethernet ports
Transmission media :
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fan quantity :
-
Dimension :235mmx103mmx27mm
Material : Metal
Level of protection :
Lightning protection for port: 6 kV
Lightning protection for power: N/A
Electrostatic protection:
-Air discharge: 8 kV
-Contact discharge: 6 kV
Forwarding mode : Store-and-forward
Switch capacity : 32Gbps
Packet forwarding rate : 23.8Mpps
Buffer : 2Mb
MAC address table : 8K
Jombo frame :10K
Power :
Input: 100 - 240V AC 50/60Hz, 0.4A
Output: 12V 1A
Power consumption : Max: <12 W
Mounting :
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment :
Operating temperature: 0C - 45?
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification : CE, FCC, RoHS
Software :
Protocols : CDMA/CD
MAC address learning : Auto-learning and Auto-Updating
Funtions :
One-key VLAN (In this mode, ports 1 to 14 cannot communicate with each other, but can communicate with ports 15 to 16.)
