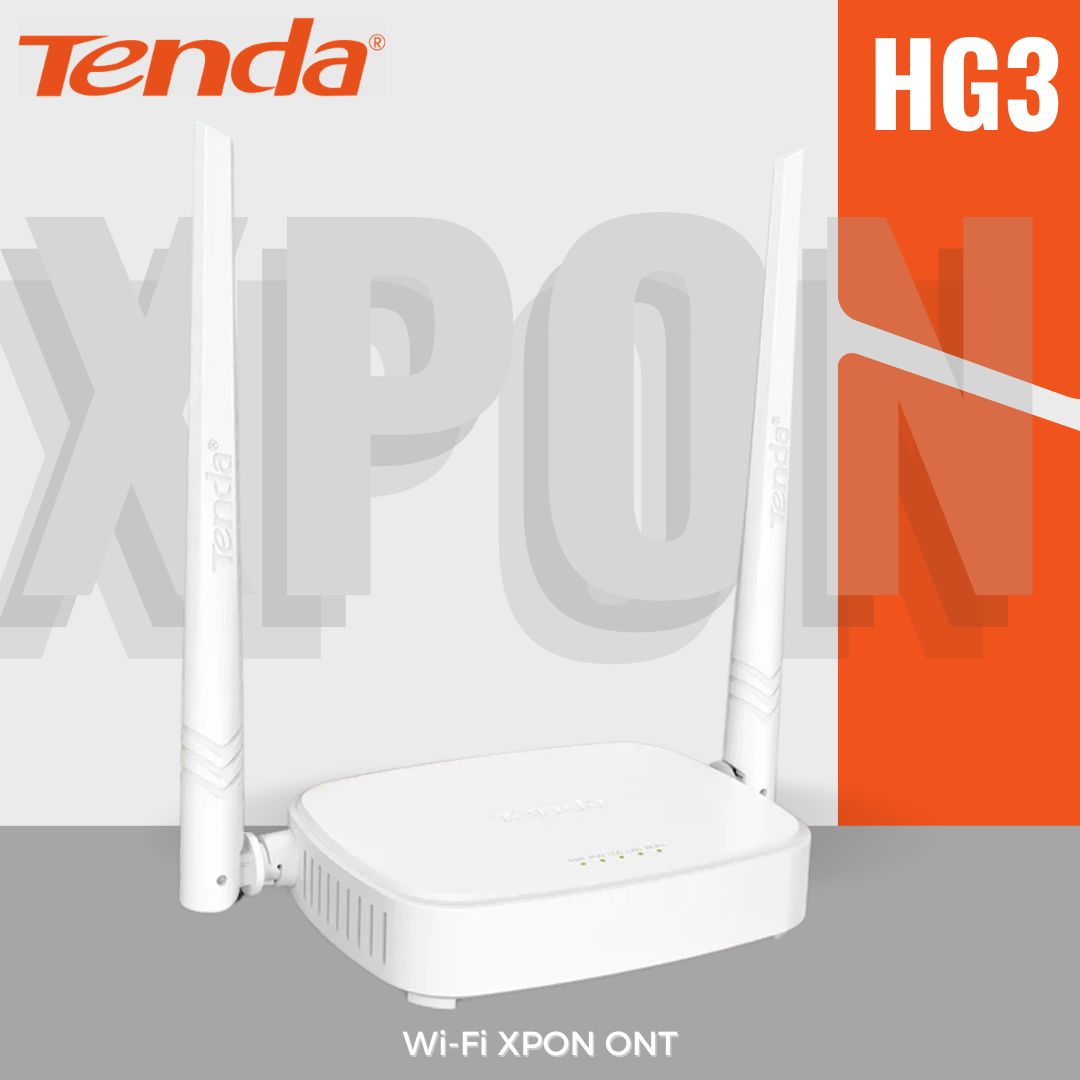

TENDA HG3 Wi-Fi XPON ONT
TENDA HG3 Wi-Fi XPON ONT
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Fitur Utama
• Modifikasi batch khusus dari konfigurasi default
• Stabil dan andal dengan chipset yang kuat dan desain pendingin yang halus
• EPON & GPON adaptif otomatis
• Sangat kompatibel dengan OLT
• Manajemen OAM/OMCI/TR069
IEEE Standards IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
EPON: IEEE802.3ah
Interfaces 1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port, 1*100Mbps RJ45
LAN Port, 1*DC Port
LED Indicator 1*WPS/RST Button
Button 1*WPS/RST Button
Optical Mode Class B+
Optical Wavelength Transmit at 1310nm, Receive at 1490nm
Transmission Distance 20km Max
Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension 166.6*90.5*27mm (W * D * H)
TX Power 0.5~5dBm
RX Power -28~-8dBm
External Power Supply DC 9V /1A
Power Consumption ≤9w
DHCP Server PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
WAN Connection PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type TR069, Internet, IPTV
Quality Of Service Bandwidth Control
IP Version IPv4, IPv6
Services DHCP, Dynamic DNS , IGMP Proxy UPnP
VPN Pass-through PPTP, L2TP, IPsec Pass-through
Firewall ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ
IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics Ping, Ping6, Tracert, Tracert6
TR069 ACS, Connection request
Frequency 2.4GHz
Bandwidth 20M/40M
Channel Range CH1-CH13
Antenna 2 * 5 dBi Antenna
Easy Client Setup WPS/RST Button
Speed 11n 300M
Transmission Power <20 dBm(EIRP)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs Main SSID ,4 Guest SSIDs
Max Terminal Linked 16
Operation Temperature 0°c ~ 45°c
Storage Temperature -40°c ~ 70°c
Operating Humidity 10% ~ 90% (Non-condensing)
Storage Humidity 5% ~ 90% (Non-condensing)

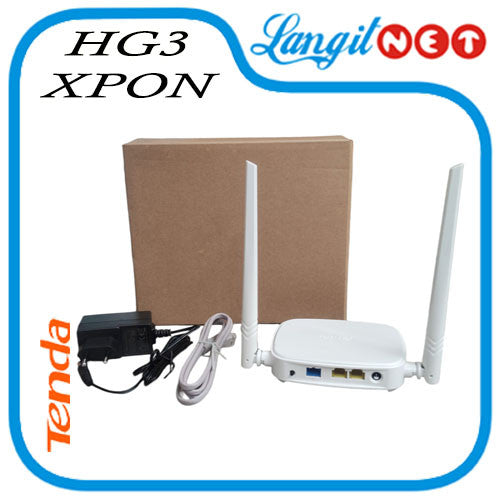

Package Contents 1*HG3, 1* Power adapter, 1* User Manual, 1* RJ45 cable
Certification CE, FCC , RoHS
