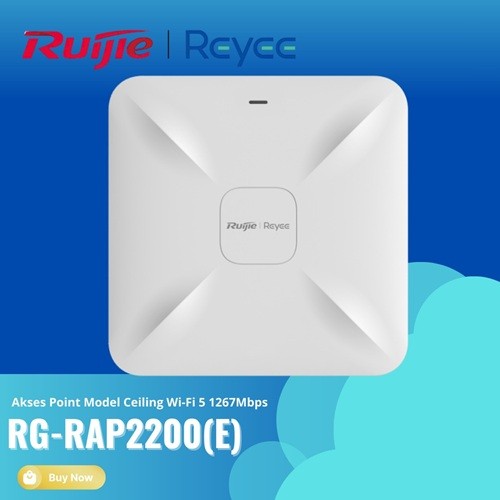

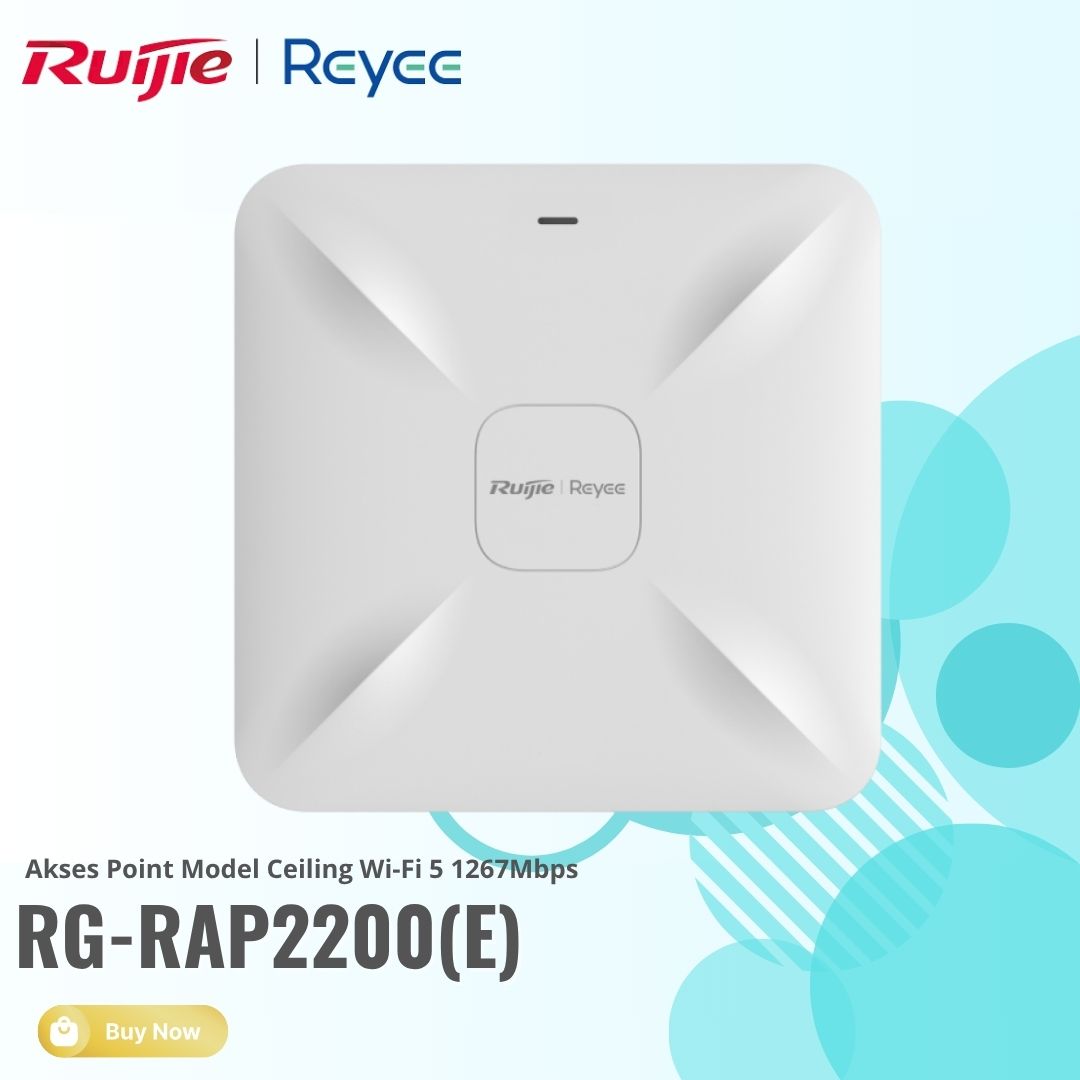

RUIJIE REYEE RG-RAP2200E Wi-Fi 5 ACCESS POINT GIGABIT

Ruijie Reyee Series RG-RAP2200 E Series GIGABIT dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af/at PoE and 12V DC local power supply

Hardware specifications

Radio : Dual-stream dual-band

Protocol : Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n

Operating Bands :

- 802.11b/g/n :2.4G ~ 2.4835GHz

- 802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)

Antenna : Internal antennas(2.4G: 2dBi,5G: 2dBi)

Spatial Streams :

- 2.4G 2x2MIMO

- 5G 2x2MIMO

Max Throughput :

- Up to 400Mbps at 2.4G

- Up to 867Mbps at 5G

- 1.267Gbp per AP

Modulation :

- OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

- DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

- MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM

Adjustable Power : 1dBm

Service Ports :

- 2 10/100/1000Base-T Ethernet ports

- PoE/LAN1 port supports PoE

Management Port : NA

LED Indicator : NA

Power Supply : Single indicator (green light)

Power Consumption :

- Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)

- 802.3af/802.3at PoE

Environment :

-  12.95W

Installation : Storage humidity: 5%~95%(non-condensing)

Safety Standard : GB4943, IEC 62368-1

EMC Standard : GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035

Vibration Standard : IEC61373

Radio Standard : EN300 328, EN301 89
