MIKROTIK RB WSAP 5HAC2ND AC LITE DUAL BAND ACCESS POINT IN WALL

POSTEL : 64597/SDPPI/2019

VIDEO PRODUK :

youtube.com/watch?v=AeETmrRylqU

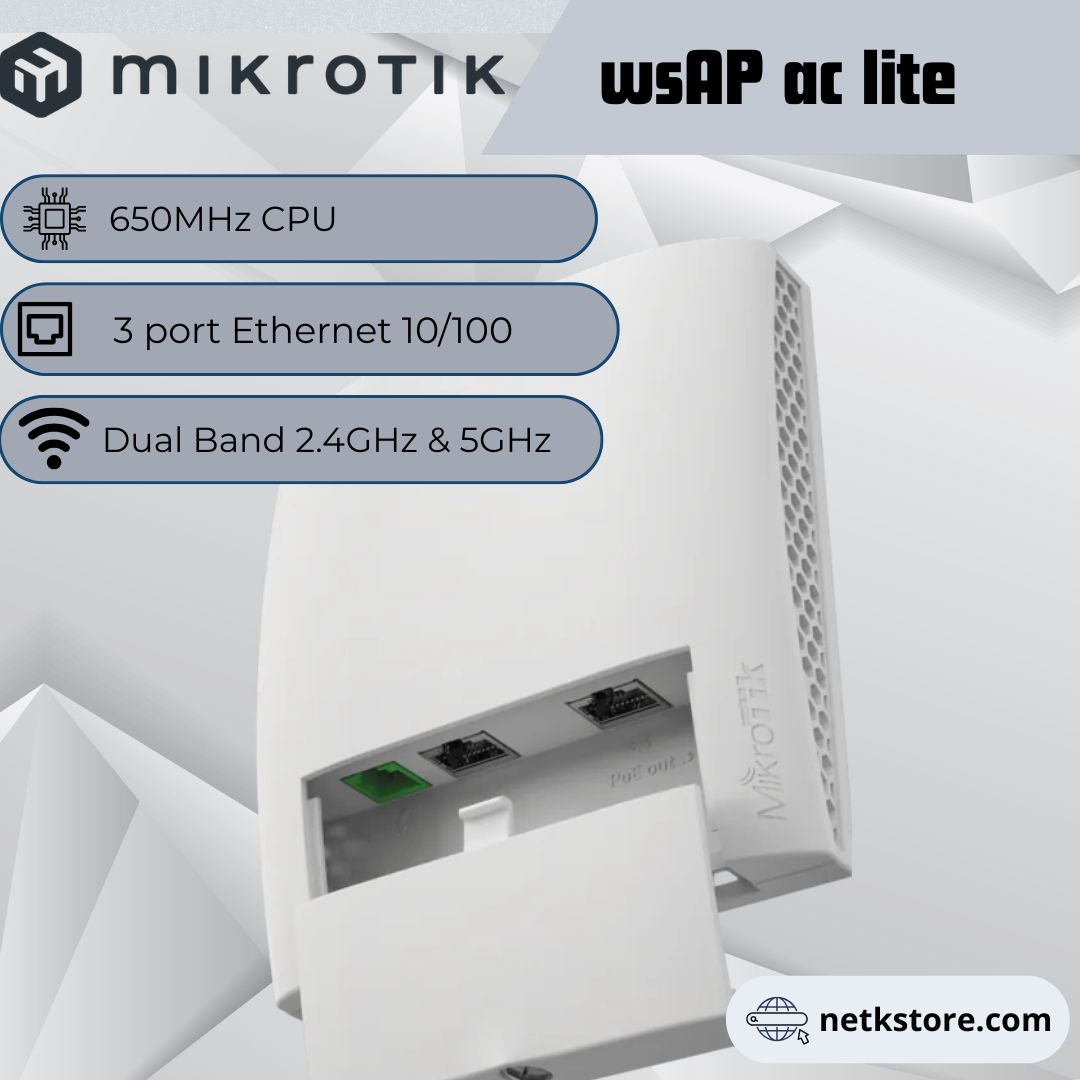

The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

Product code     RBwsAP-5Hac2nD

Architecture     MIPSBE

CPU     QCA9531

CPU core count     1

CPU nominal frequency     650 MHz

Dimensions     112 x 126 x 30 mm

License level     4

Operating System     RouterOS

Size of RAM     64 MB

Storage size     16 MB

Storage type     FLASH

Tested ambient temperature     -40°C to 60°C

Powering

Details

PoE in      802.3af/at

PoE out      Passive PoE

PoE in input Voltage      18-57 V

Number of DC inputs      1 (PoE-IN)

Max out per port output (input > 30 V)      420 mA

Max out per port output (input < 30 V)      420 mA

Max total out (A)      420 mA

Max power consumption      20 W

Max power consumption without attachments      6 W

Wireless

Details

Wireless 2.4 GHz number of chains      2

Wireless 2.4 GHz Max data rate      300 Mbit/s

Wireless 2.4 GHz standards      802.11b/g/n

AC speed      AC750

Antenna gain dBi for 2.4 GHz      1.5

Wireless 2.4 GHz chip model      QCA9531

Wireless 5 GHz number of chains      1

Wireless 5 GHz Max data rate      433 Mbit/s

Wireless 5 GHz standards      802.11a/n/ac

Antenna gain dBi for 5 GHz      3

Wireless 5 GHz chip model      QCA-9887

Ethernet

Details

10/100 Ethernet ports      3

Peripherals

Details

Number of USB ports      1

USB Power Reset      Yes

USB slot type      USB type A

Max USB current (A)      0.5

Other

Details

Mode button      Yes

Wireless specifications

2.4 GHz     Transmit (dBm)     Receive Sensitivity

1MBit/s     22     -96

11MBit/s     22     -89

6MBit/s     20     -93

54MBit/s     18     -74

MCS0     20     -93

MCS7     16     -71

5 GHz     Transmit (dBm)

6MBit/s     23     -93

54MBit/s     20     -75

MCS0     23     -93

MCS7     19     -71
