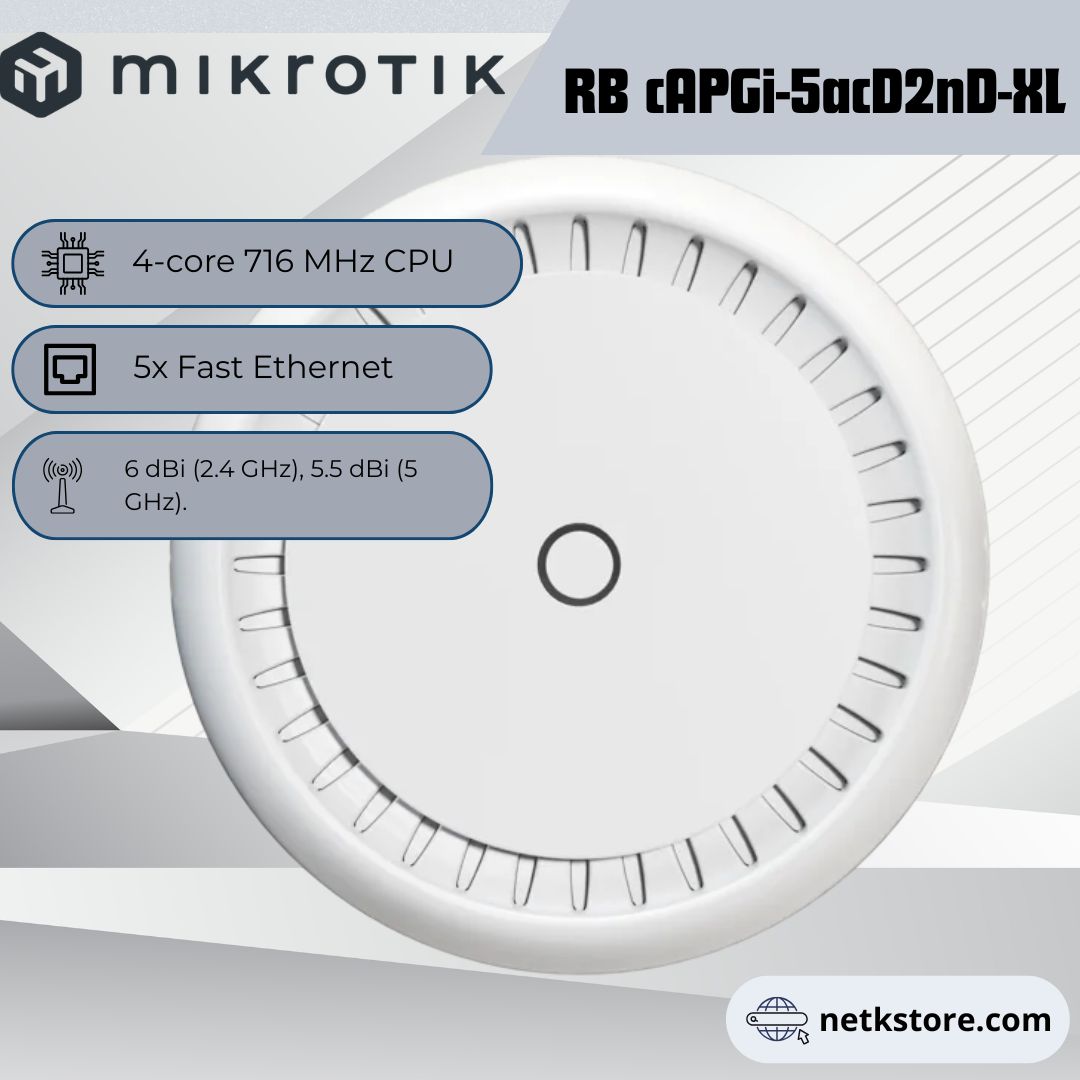

MIKROTIK RB cAPGi 5acD2nD XL cAP XL ac

Video Produk :

youtube.com/watch?v=IKqTHMpxiQs

Specifications

Details

Product code : RBcAPGi-5acD2nD-XL

Architecture : ARM 32bit

CPU : IPQ-4018

CPU core count : 4

CPU nominal frequency : 716 MHz

Dimensions : 191 x 42 mm

RouterOS license : 4

Operating System : RouterOS

Size of RAM : 128 MB

Storage size : 16 MB

Storage type : FLASH

MTBF : Approximately 100'000 hours at 25C

Tested ambient temperature : -40C to 70C

IPsec hardware acceleration : Yes

Wireless capabilities :

Details :

Wireless 2.4 GHz Max data rate : 300 Mbit/s

Wireless 2.4 GHz number of chains : 2

Wireless 2.4 GHz standards : 802.11b/g/n

Antenna gain dBi for 2.4 GHz : 6

Wireless 2.4 GHz chip model : IPQ-4018

Wireless 2.4 GHz generation : Wi-Fi 4

Wireless 5 GHz Max data rate : 867 Mbit/s

Wireless 5 GHz number of chains : 2

Wireless 5 GHz standards : 802.11a/n/ac

Antenna gain dBi for 5 GHz : 5.5

Wireless 5 GHz chip model : IPQ-4018

Wireless 5 GHz generation : Wi-Fi 5

WiFi speed : AC1200

Ethernet :

Details :

10/100/1000 Ethernet ports : 2

Number of 1G Ethernet ports with PoE-out : 1

Powering :

Details :

Number of DC inputs : 1 (PoE-IN)

Max power consumption : 24 W

Max power consumption without attachments : 11 W

Cooling type : Passive

PoE in : 802.3af/at

PoE in input Voltage : 18-57 V

PoE-out :

Details :

PoE-out ports : Ether2

PoE out : Passive PoE up to 57V

Max out per port output (input 18-30 V) : 500 mA

Max out per port output (input 30-57 V) : 330 mA

Max total out (A) : 500 mA

Included parts :

- 24V 1.2A power adapter

- Ceiling mount

- Gigabit PoE injector

- K-81 fastening set
