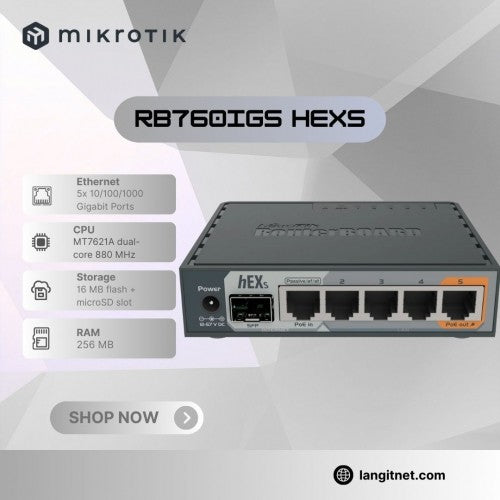

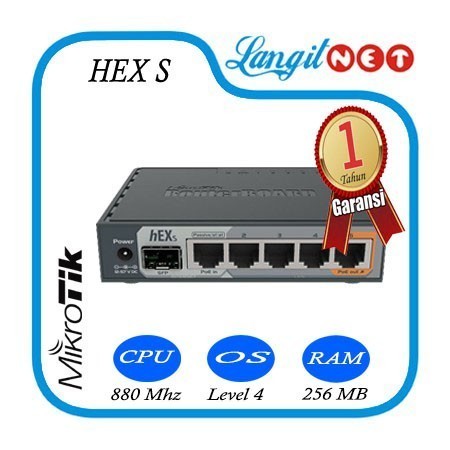

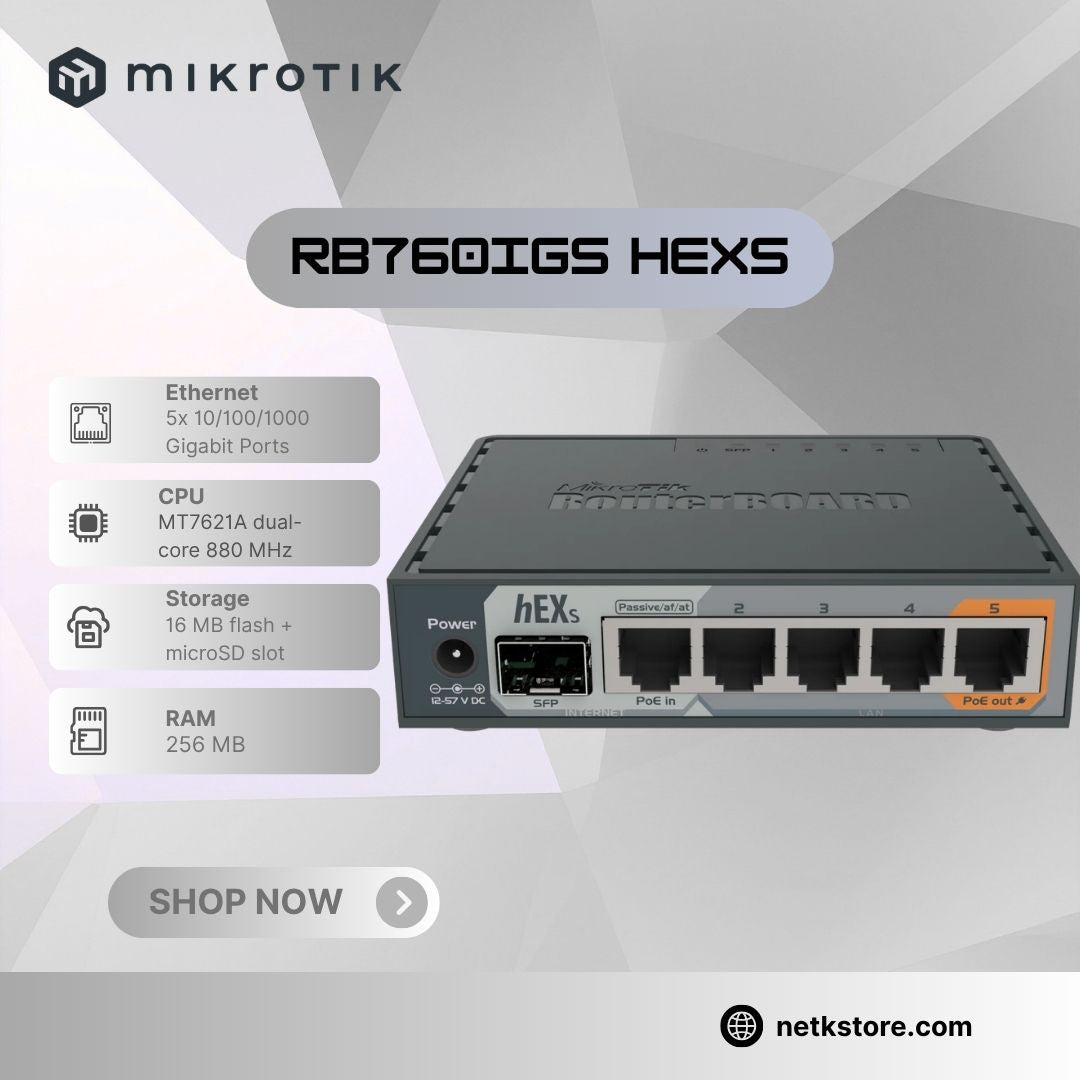

MIKROTIK RB 760iGS hEX S

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Product code RB760iGS

Architecture MMIPS

CPU MT7621A

CPU core count 2

CPU nominal frequency 880 MHz

CPU Threads count 4

Dimensions 113 x 89 x 28 mm

License level 4

Operating System RouterOS

Size of RAM 256 MB

Storage size 16 MB

Storage type FLASH

Tested ambient temperature -40C to 70C

Powering

Details

PoE in 802.3af/at

PoE out Passive PoE up to 57V

PoE in input Voltage 12-57 V

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-57 V

Max out per port output (input > 30 V) 500 mA

Max out per port output (input < 30 V) 500 mA

Max total out (A) 500 mA

Max power consumption 24 W

Max power consumption without attachments 6 W

Ethernet

Details

10/100/1000 Ethernet ports 5

Fiber

Details

SFP ports 1

Peripherals

Details

Memory card type microSD

Memory Cards 1

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Mode button Yes
