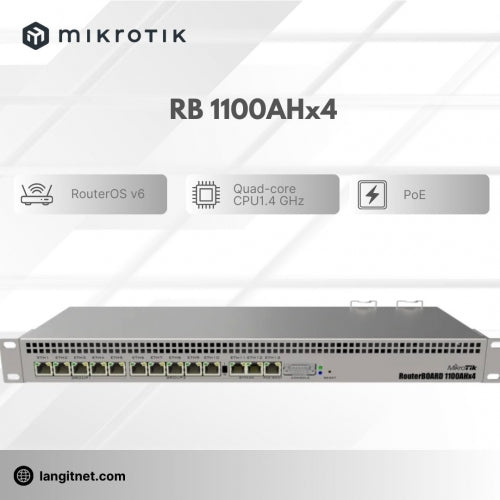

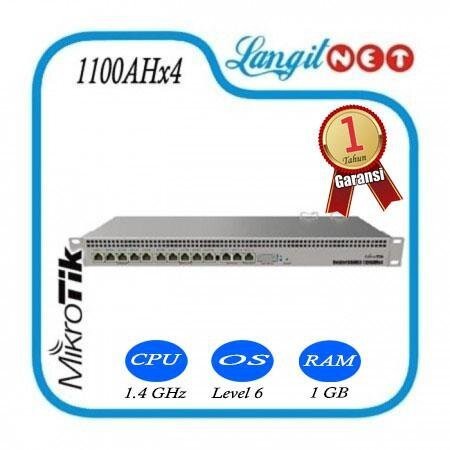

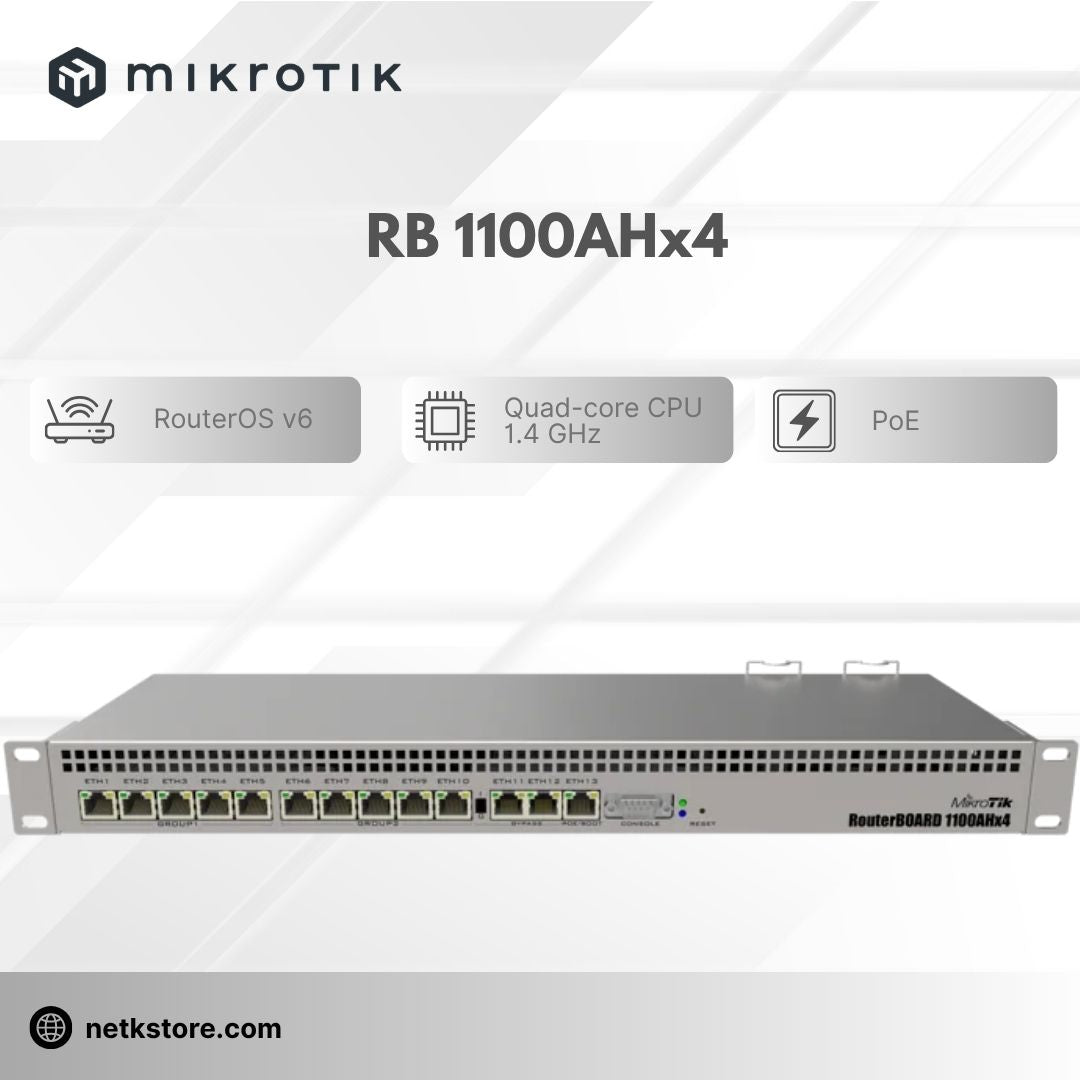

MIKROTIK RB 1100AHx4
MIKROTIK RB 1100AHx4
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications
Details
Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 443 x 148 x 44 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W
Ethernet
Details
10/100/1000 Ethernet ports 13
Peripherals
Details
Memory card type microSD
Memory Cards 1
Serial port RS232
Other
Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
Details
Certification CE/RED, EAC, ROHS
Description
Description
Specifications
Details
Product code RB1100x4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 443 x 148 x 44 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering
Details
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V
Max power consumption 20 W
Ethernet
Details
10/100/1000 Ethernet ports 13
Peripherals
Details
Memory card type microSD
Memory Cards 1
Serial port RS232
Other
Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
Details
Certification CE/RED, EAC, ROHS
