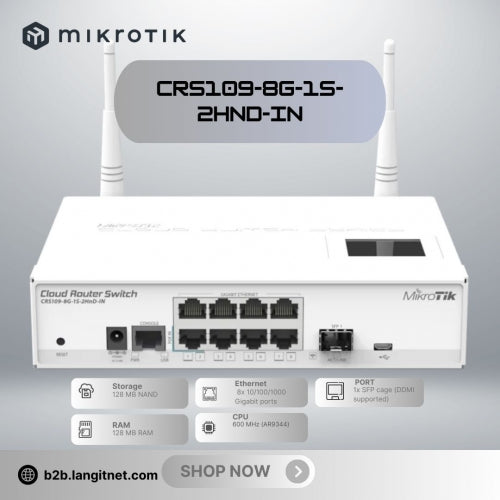

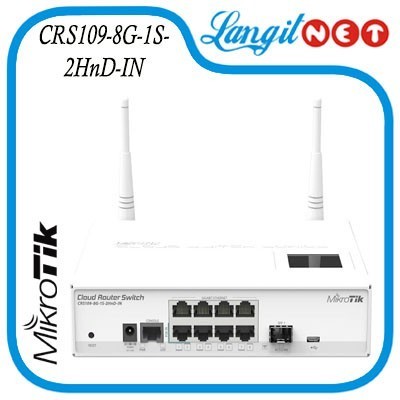

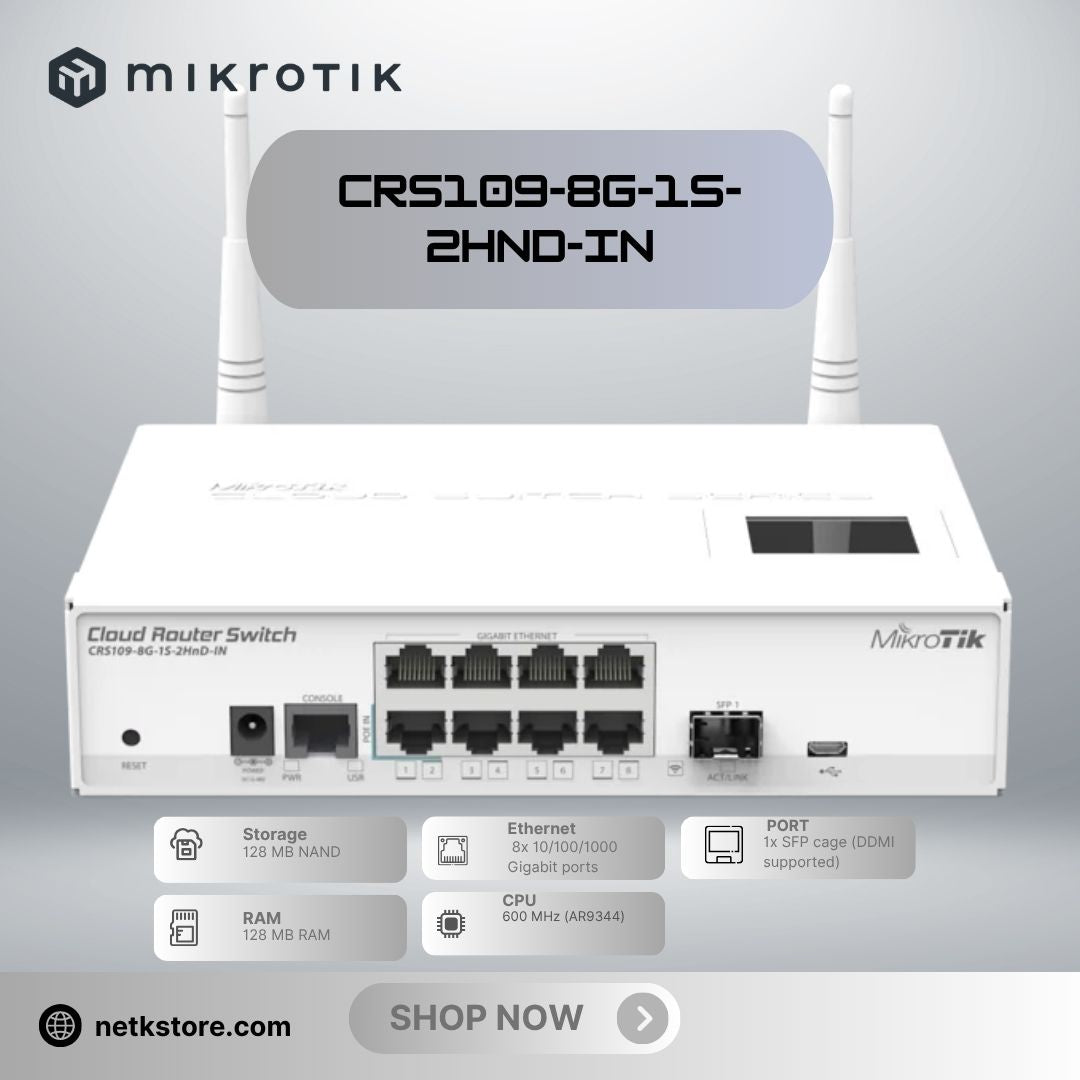

MIKROTIK CRS109 8G 1S 2HnD IN CLOUD ROUTER SWITCH

POSTEL : 56356/SDPPI/2018

VIDEO PRODUK :

youtube.com/watch?v=aE-_7SNBpoY

Specifications

Details

Product code     CRS109-8G-1S-2HnD-IN

Architecture     MIPSBE

CPU     AR9344

CPU core count     1

CPU nominal frequency     600 MHz

Dimensions     200 x 142 x 44 mm

RouterOS license     5

Operating System     RouterOS

Size of RAM     128 MB

Storage size     128 MB

Storage type     NAND

Tested ambient temperature     -40°C to 65°C

MTBF     Approximately 200'000 hours at 25C

Powering

Details

PoE in     Passive PoE

802.3af support     yes

PoE in input Voltage     10-57 V

Number of DC inputs     2 (DC jack, PoE-IN)

DC jack input Voltage     10-57 V

Max power consumption     13 W

FAN count     Passive

Wireless specifications

Details

Wireless 2.4 GHz Max data rate     300 Mbit/s

Wireless 2.4 GHz number of chains     2

Wireless 2.4 GHz standards     802.11b/g/n

Antenna gain dBi for 2.4 GHz     4

Wireless 2.4 GHz chip model     AR9344

Wireless 2.4 GHz generation     Wi-Fi 4

Ethernet

Details

10/100/1000 Ethernet ports     8

Fiber

Details

SFP DDMI     yes

SFP ports     1

Peripherals

Details

Serial port     RJ45

Number of USB ports     1

USB Power Reset     Yes

USB slot type     microUSB type AB

Max USB current (A)     1.5

Other

Details

PCB temperature monitor     Yes

Voltage Monitor     Yes

Certification & Approvals

Details

Certification     CE, FCC, EAC, ROHS

Wireless specifications

2.4 GHz     Transmit (dBm)     Receive Sensitivity

1MBit/s     29     -97

11MBit/s     28     -90

6MBit/s     30     -96

54MBit/s     25     -76

MCS0     30     -96

MCS7     23     -73
