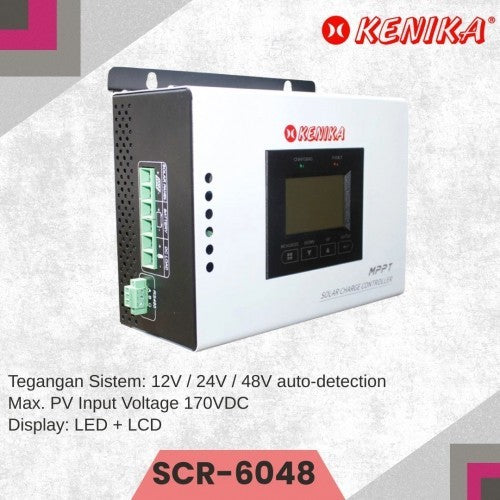

KENIKA SCR6048 SOLAR CHARGE CONTROLLER
KENIKA SCR6048 SOLAR CHARGE CONTROLLER
Out of stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications:
MODEL SCR6048
MPPT Efficiency >99%
System Voltage 12V/24V/48V (Auto)
Dimension (W×D×H) 200×168×94mm
Box Dimension (W×D×H) 260×185×105mm
Nett Weight 1.8kg
Gross Weight 2kg
INPUT
Max. PV Input Voltage 170VDC
MPPT Operating Voltage Range 12V 18VDC - 150VDC
24V 34VDC - 150VDC
48V 65VDC - 150VDC
Low Voltage Protection 12V 16VDC
24V 30VDC
48V 60VDC
High-Voltage Protection 170VDC
PV Rated Input Power 12V 855W
24V 1710W
48V 3420W
DC LOAD OUTPUT
Load Voltage Same as Battery Voltage
Load Current 60A
CHARGE
Battery Type Sealed Lead Acid, Gel, Flooded, Lithium-Ion, User-Defined
Charging Mode Three Stage: CC (Constant Current) - CV (Constant Voltage) - CF (Float Charge)
Float Charging Voltage 12V 13.8VDC (Settable)
24V 27.6VDC (Settable)
48V 55.2VDC (Settable)
Boost Charging Voltage 12V 14.5VDC (Settable)
24V 29.0VDC (Settable)
48V 58.0VDC (Settable)
SYSTEM
Protection Function Input Low/Over Voltage, Input/Output Polarity Reverse Connection, Short Circuit, Over Temperature, Battery Shedding, etc.
Display LED+LCD
Communication RS485 (Optional)
ENVIRONMENT
Relative Humidity 5~90% RH (Non-Condensing)
Altitude < 3000m
Operating Temperature -20°C~+40°C
Protection Level IP21
Description
Description
Specifications:
MODEL SCR6048
MPPT Efficiency >99%
System Voltage 12V/24V/48V (Auto)
Dimension (W×D×H) 200×168×94mm
Box Dimension (W×D×H) 260×185×105mm
Nett Weight 1.8kg
Gross Weight 2kg
INPUT
Max. PV Input Voltage 170VDC
MPPT Operating Voltage Range 12V 18VDC - 150VDC
24V 34VDC - 150VDC
48V 65VDC - 150VDC
Low Voltage Protection 12V 16VDC
24V 30VDC
48V 60VDC
High-Voltage Protection 170VDC
PV Rated Input Power 12V 855W
24V 1710W
48V 3420W
DC LOAD OUTPUT
Load Voltage Same as Battery Voltage
Load Current 60A
CHARGE
Battery Type Sealed Lead Acid, Gel, Flooded, Lithium-Ion, User-Defined
Charging Mode Three Stage: CC (Constant Current) - CV (Constant Voltage) - CF (Float Charge)
Float Charging Voltage 12V 13.8VDC (Settable)
24V 27.6VDC (Settable)
48V 55.2VDC (Settable)
Boost Charging Voltage 12V 14.5VDC (Settable)
24V 29.0VDC (Settable)
48V 58.0VDC (Settable)
SYSTEM
Protection Function Input Low/Over Voltage, Input/Output Polarity Reverse Connection, Short Circuit, Over Temperature, Battery Shedding, etc.
Display LED+LCD
Communication RS485 (Optional)
ENVIRONMENT
Relative Humidity 5~90% RH (Non-Condensing)
Altitude < 3000m
Operating Temperature -20°C~+40°C
Protection Level IP21
