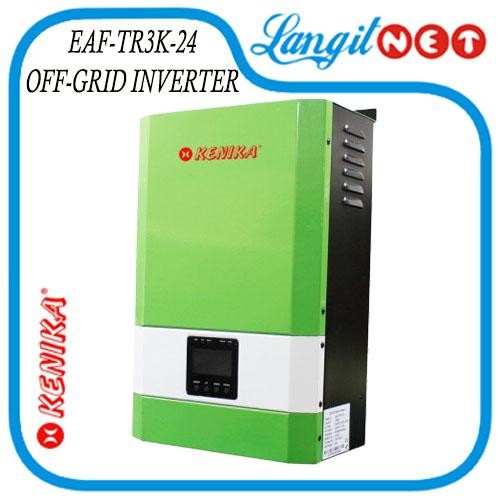

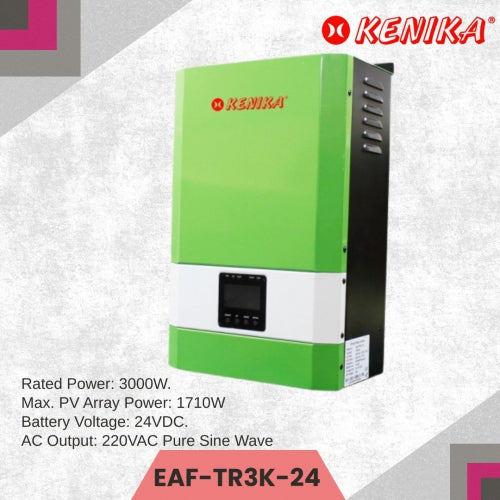

KENIKA EAF-TR3K-24 Solar OFF-GRID Inverter 24V 3000W WITH TOROIDALTRANSFORMER
KENIKA EAF-TR3K-24 Solar OFF-GRID Inverter 24V 3000W WITH TOROIDALTRANSFORMER
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications:
MODEL EAF-TR3K-24
Rated Power 3000W
Installation Type Wall Mounting
Transformer Low Frequency Toroidal
INPUT
Voltage Range 220VAC (+25%,-30%)
Frequency Range 50/60Hz ±10Hz (Auto)
OUTPUT
AC Voltage Regulation 220VAC ±3% (AC Mode ±10%)
Frequency 50/60Hz ±0.5Hz Auto (AC Mode ±10Hz)
Battery Efficiency 83%
AC Efficiency 93%
Transfer Time < 8ms
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27.2VDC
Overcharge Protection 30.0VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Power 1710W
MPPT Range @ Operating Voltage 34VDC ~ 150VDC
Max. PV Array Open Circuit Voltage 180VDC
Max. Solar Charge Current 60A
AC Charge Current 0A-40A Adjustable
Maximum Charge Current 100A
Maximum Efficiency 98%
PROTECTION
Output Short Circuit Jump Fuse when utility is available; Shut Down in inverter mode
Overload < 105%, Inverter Alarms, 110% - 130%, inverter will shut down within 60s. 130% - 200%, inverter will shut down within 20s. > 200%, inverter shut down within 1s. Once the solar inverter is off, it must be turned on manually.
High AC Voltage Turn off mains INPUT, turn to Battery Mode Automatically
Low DC Voltage Inverter shut down automatically, While the mains recover, Inverter turn on and charge battery automatically
Over Temperature Alarm and turn off the output, and it can be automatically restored after the temperature drops.
Isolation Type Built-in Isolated Transformer
Protection Grade IP20
ENVIRONMENT
Humidity 0~93% (No Condensation)
Temperature -10°C ~ 50°C
Altitude ≤3000m
INTERFACE
Communication RS232 (Monitoring via PC), WiFi Port
Display LCD + LED
MECHANICAL SPECIFICATIONS
Product Dimension (D×W×H) 650×370×190mm
Package Dimension (D×W×H) 740×487×240mm
Nett Weight 27.3kg
Gross Weight 31kg
Description
Description
Specifications:
MODEL EAF-TR3K-24
Rated Power 3000W
Installation Type Wall Mounting
Transformer Low Frequency Toroidal
INPUT
Voltage Range 220VAC (+25%,-30%)
Frequency Range 50/60Hz ±10Hz (Auto)
OUTPUT
AC Voltage Regulation 220VAC ±3% (AC Mode ±10%)
Frequency 50/60Hz ±0.5Hz Auto (AC Mode ±10Hz)
Battery Efficiency 83%
AC Efficiency 93%
Transfer Time < 8ms
Waveform Pure Sine Wave
BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27.2VDC
Overcharge Protection 30.0VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Power 1710W
MPPT Range @ Operating Voltage 34VDC ~ 150VDC
Max. PV Array Open Circuit Voltage 180VDC
Max. Solar Charge Current 60A
AC Charge Current 0A-40A Adjustable
Maximum Charge Current 100A
Maximum Efficiency 98%
PROTECTION
Output Short Circuit Jump Fuse when utility is available; Shut Down in inverter mode
Overload < 105%, Inverter Alarms, 110% - 130%, inverter will shut down within 60s. 130% - 200%, inverter will shut down within 20s. > 200%, inverter shut down within 1s. Once the solar inverter is off, it must be turned on manually.
High AC Voltage Turn off mains INPUT, turn to Battery Mode Automatically
Low DC Voltage Inverter shut down automatically, While the mains recover, Inverter turn on and charge battery automatically
Over Temperature Alarm and turn off the output, and it can be automatically restored after the temperature drops.
Isolation Type Built-in Isolated Transformer
Protection Grade IP20
ENVIRONMENT
Humidity 0~93% (No Condensation)
Temperature -10°C ~ 50°C
Altitude ≤3000m
INTERFACE
Communication RS232 (Monitoring via PC), WiFi Port
Display LCD + LED
MECHANICAL SPECIFICATIONS
Product Dimension (D×W×H) 650×370×190mm
Package Dimension (D×W×H) 740×487×240mm
Nett Weight 27.3kg
Gross Weight 31kg
