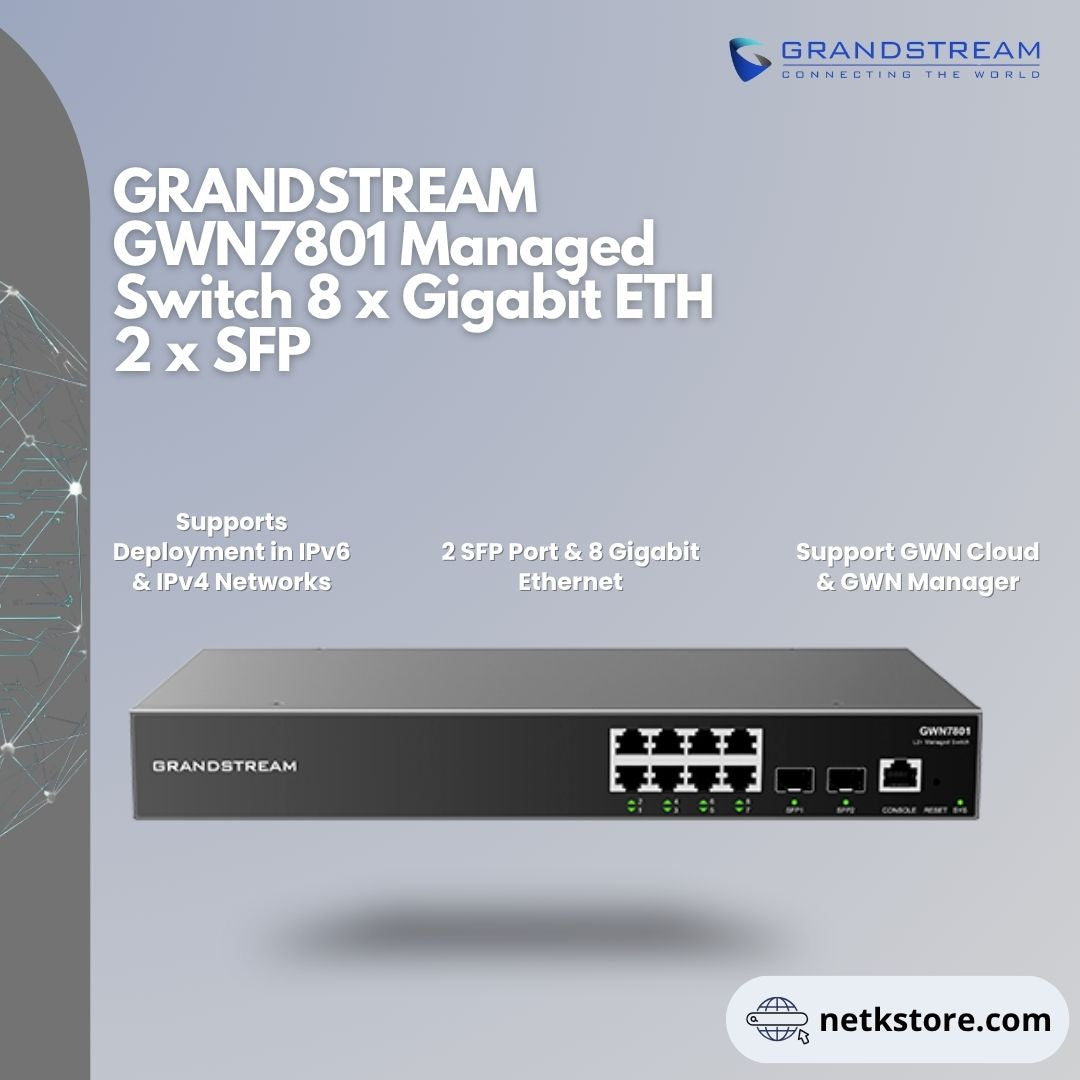

GRANDSTREAM GWN7801 Managed Switch 8 x Gigabit ETH 2 x SFP
GRANDSTREAM GWN7801 Managed Switch 8 x Gigabit ETH 2 x SFP
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable
Enterprise Layer 2+ Managed Network Switch, 8 x GigE, 2 x SFP
8 Gigabit Ethernet ports and 2 Gigabit SFP ports
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Spesifikasi
Model GWN7801
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports 8
Gigabit SFP Ports 2
Console 1
of PoE Ports N/A
Integrated Power Supply 30W
Max Output Power per PoE Port N/A
Max Total PoE Output Power N/A
PoE Standards N/A
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 10Gbps
Switching Capability 20Gbps
Forwarding Rate 14.88Mpps
Packet Buffer 4.1Mb
Switching • 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 16 instances for STP/RSTP/MSTP
Multicast IGMP Snooping, MLD Snooping, MVR
QoS/ACL • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, , diagnostics including Ping, Traceroute, port
mirroring, UDLD(TBD) and copper test
Security • User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support
LEDs 1x tri-color LED for device tracking and status indication, 10x green LEDs for data ports
Fan N/A
Environmental Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Dimensions 330mm(L)x175mm(W)x44mm(H)
Mounting Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
Package Content 1x Switch
1x 1.2m(10A) AC Cable
Rack Mounting Standard Brackets
1x Ground Cable
4x Rubber Feet
2x Lug Ear
Compliance FCC, CE, RCM, IC, UKCA
Description
Description
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable
Enterprise Layer 2+ Managed Network Switch, 8 x GigE, 2 x SFP
8 Gigabit Ethernet ports and 2 Gigabit SFP ports
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
Built-in QoS allows for prioritization of network traffic
Spesifikasi
Model GWN7801
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports 8
Gigabit SFP Ports 2
Console 1
of PoE Ports N/A
Integrated Power Supply 30W
Max Output Power per PoE Port N/A
Max Total PoE Output Power N/A
PoE Standards N/A
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 10Gbps
Switching Capability 20Gbps
Forwarding Rate 14.88Mpps
Packet Buffer 4.1Mb
Switching • 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 16 instances for STP/RSTP/MSTP
Multicast IGMP Snooping, MLD Snooping, MVR
QoS/ACL • Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP DHCP server, DHCP relay, Option 82, 60,160 and 43
Maintenance CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, , diagnostics including Ping, Traceroute, port
mirroring, UDLD(TBD) and copper test
Security • User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support
LEDs 1x tri-color LED for device tracking and status indication, 10x green LEDs for data ports
Fan N/A
Environmental Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Dimensions 330mm(L)x175mm(W)x44mm(H)
Mounting Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
Package Content 1x Switch
1x 1.2m(10A) AC Cable
Rack Mounting Standard Brackets
1x Ground Cable
4x Rubber Feet
2x Lug Ear
Compliance FCC, CE, RCM, IC, UKCA
