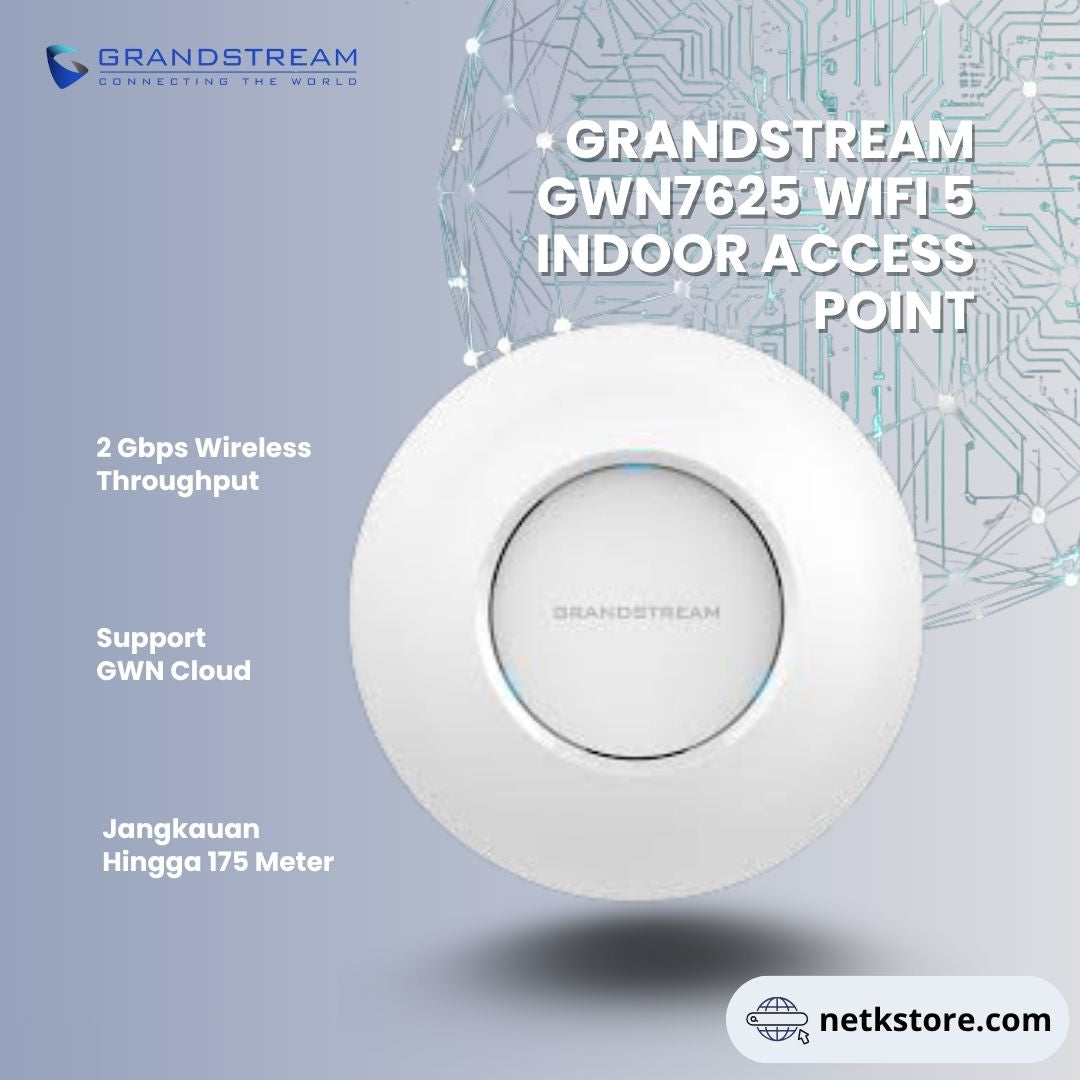

GRANDSTREAM GWN7625 Wi-Fi 5 Indoor Access Point
GRANDSTREAM GWN7625 Wi-Fi 5 Indoor Access Point
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band.
2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
Spesifikasi
Model GWN7625
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 6 single frequency internal antennas
2.4GHz, gain 3.5dBi
5GHz, gain 4.5dBi
Wi-Fi Data Rates 2.4G:
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G:
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2×2:2 2.4GHz(MIMO)
4×4:4 5GHz(MU-MIMO)
Maximum TX Power 2.4G: 23dBm
5G: 25dBm
*Maximum power varies by country, frequency band and MCS rate
Reciever Sensitivity 2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients 200
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 30 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Supports 802.3az
PoE 802.3af/ 802.3at;
Maximum Power Consumption
Description
Description
The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band.
2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
Spesifikasi
Model GWN7625
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 6 single frequency internal antennas
2.4GHz, gain 3.5dBi
5GHz, gain 4.5dBi
Wi-Fi Data Rates 2.4G:
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G:
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2×2:2 2.4GHz(MIMO)
4×4:4 5GHz(MU-MIMO)
Maximum TX Power 2.4G: 23dBm
5G: 25dBm
*Maximum power varies by country, frequency band and MCS rate
Reciever Sensitivity 2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)
Concurrent Clients 200
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 30 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Supports 802.3az
PoE 802.3af/ 802.3at;
Maximum Power Consumption
