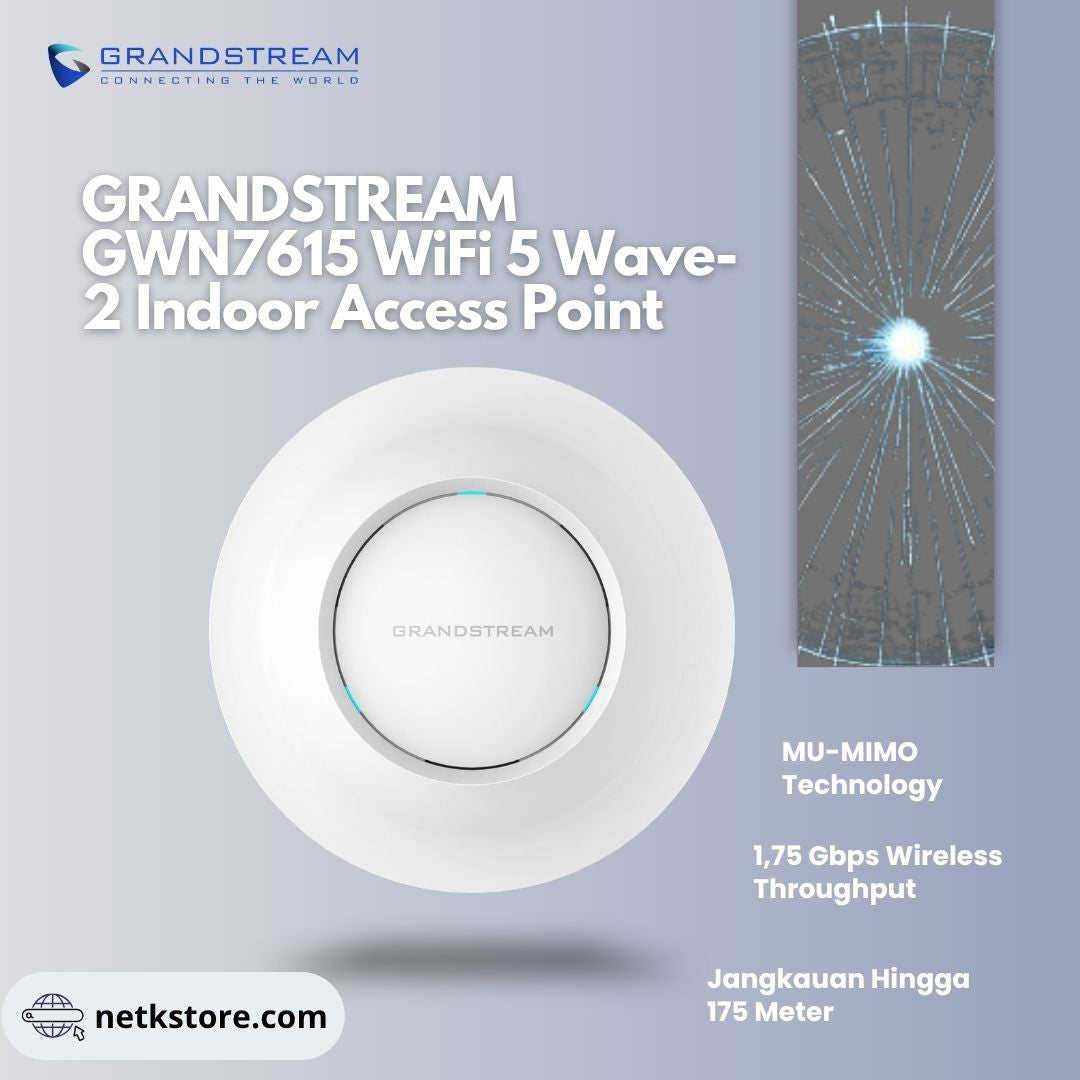

GRANDSTREAM GWN7615 WiFi 5 Wave-2 Indoor Access Point

The GWN7615 is an enterprise performance 802.11ac Wave-2 Wi-Fi access point to create scalability for medium to high user density environments. It offers dual-band 3×3:3 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports

Dual-band 3x3:3 MU-MIMO technology

Self power adaptation upon auto detection of PoE or PoE+

Support 200+ concurrent Wi-Fi client devices

Up to 175-meter coverage range

Advanced QoS to ensure real-time performance of low-latency applications

Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller

Specification

Model     GWN7615

Wi-Fi Standards     IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas     3 dual band internal antennas

2.4GHz, gain 3dBi

5 GHz, gain 3dBi

Wi-Fi Data Rates     IEEE 802.11ac: 6.5 Mbps to 1300Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

IEEE 802.11n: 6.5 Mbps to 450 Mbps

IEEE 802.11b: 1, 2, 5.5, 11Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands     2.4 GHz Radio: 2412 – 2484 MHz

5 GHz Radio: 5180-5825 MHz

Channel Bandwidth     2.4G: 20 and 40 MHz

5G: 20, 40 and 80 MHz

Wi-Fi and System Security     WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO     3×3:3 2.4G(MIMO)

3×3:3 5G(MU-MIMO)

Coverage Range     Up to 175 meters

*coverage range can vary based on environment

Maximum TX Power     2.4G:26dBm

5G:24dBm

*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity     2.4G

802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs     32 SSIDs total, 16 per radio (2.4 Ghz and 5 Ghz)

Concurrent Wireless Clients     200+

Network Interfaces     2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports     1 x Reset Pinhole, 1 x Kensington lock

Mounting     Indoor wall mount or ceiling mount, kits included

LEDs     3 tri-color LEDs for device tracking and status indication

Network Protocols     IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS     802.11e/WMM, VLAN, TOS

Network Management     Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy
