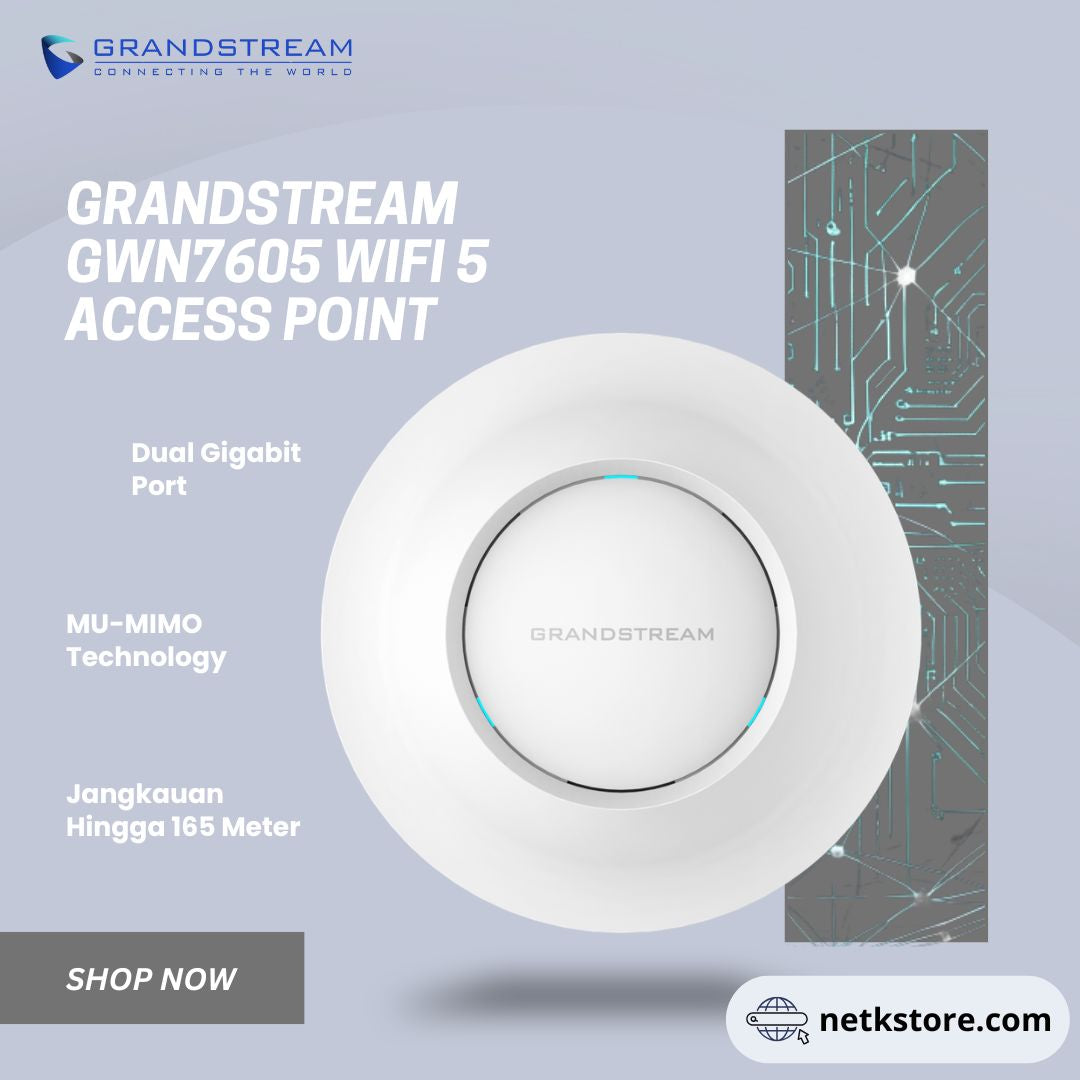

GRANDSTREAM GWN7605 WiFi 5 Access Point
GRANDSTREAM GWN7605 WiFi 5 Access Point
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
The GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
1.27Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 2x2:2 MU-MIMO with beam-forming technology
Self power adaptation upon auto detection of PoE/PoE+
Supports 100+ concurrent Wi-Fi client devices
Up to 165-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Specification
Model GWN7605
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20, 40 and 80 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)
Coverage Range Up to 165 meters
*coverage range can vary based on environment
Maximum TX Power 2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
Concurrent Wireless Clients 100+
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1 x Reset Pinhole, 1 x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-b
Description
Description
The GWN7605 is an affordable 802.11ac Wave-2 Wi-Fi access point ideal for small to medium wireless network deployments with medium user density. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
1.27Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 2x2:2 MU-MIMO with beam-forming technology
Self power adaptation upon auto detection of PoE/PoE+
Supports 100+ concurrent Wi-Fi client devices
Up to 165-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Specification
Model GWN7605
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas 2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps; 400Mbps with 256-QAM on 2.4GHz
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz
Channel Bandwidth 2.4G: 20 and 40 MHz
5G: 20, 40 and 80 MHz
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)
Coverage Range Up to 165 meters
*coverage range can vary based on environment
Maximum TX Power 2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
Concurrent Wireless Clients 100+
Network Interfaces 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports 1 x Reset Pinhole, 1 x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 3 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-b
