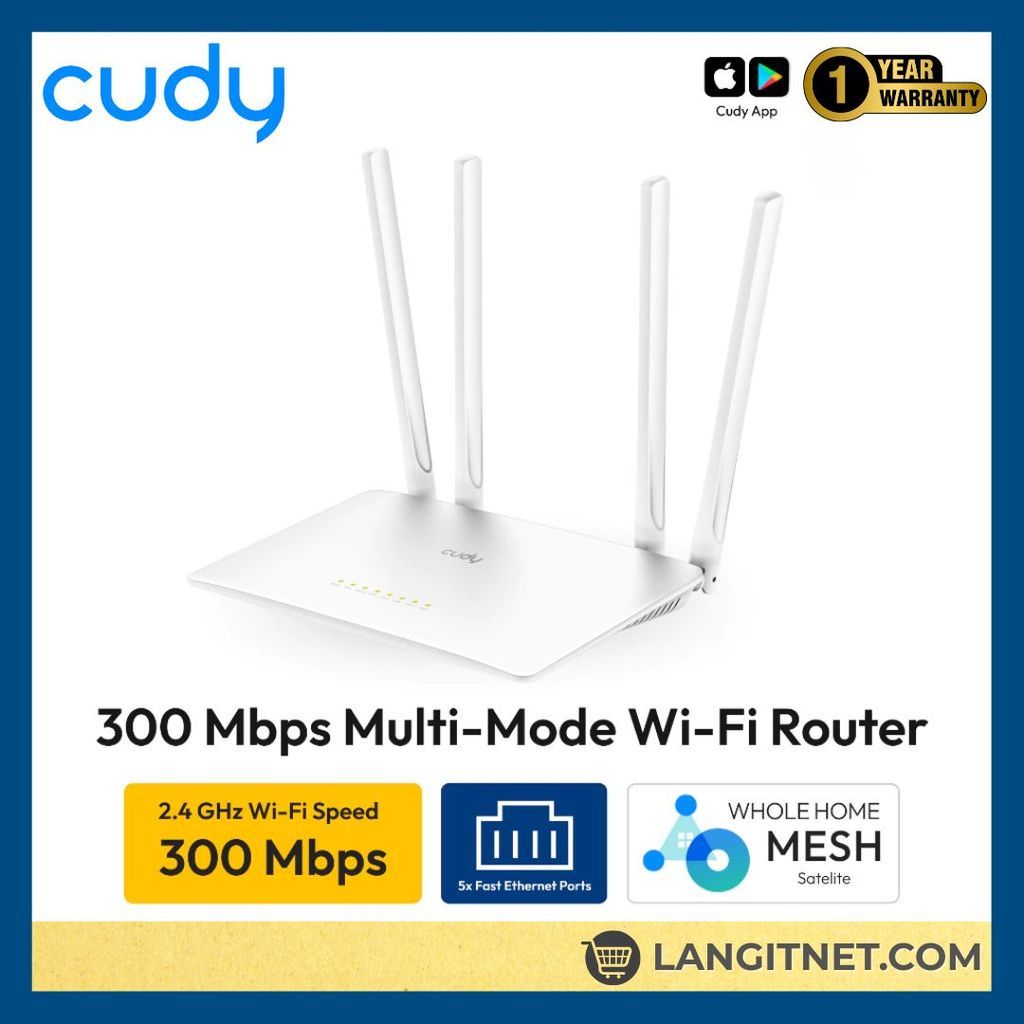

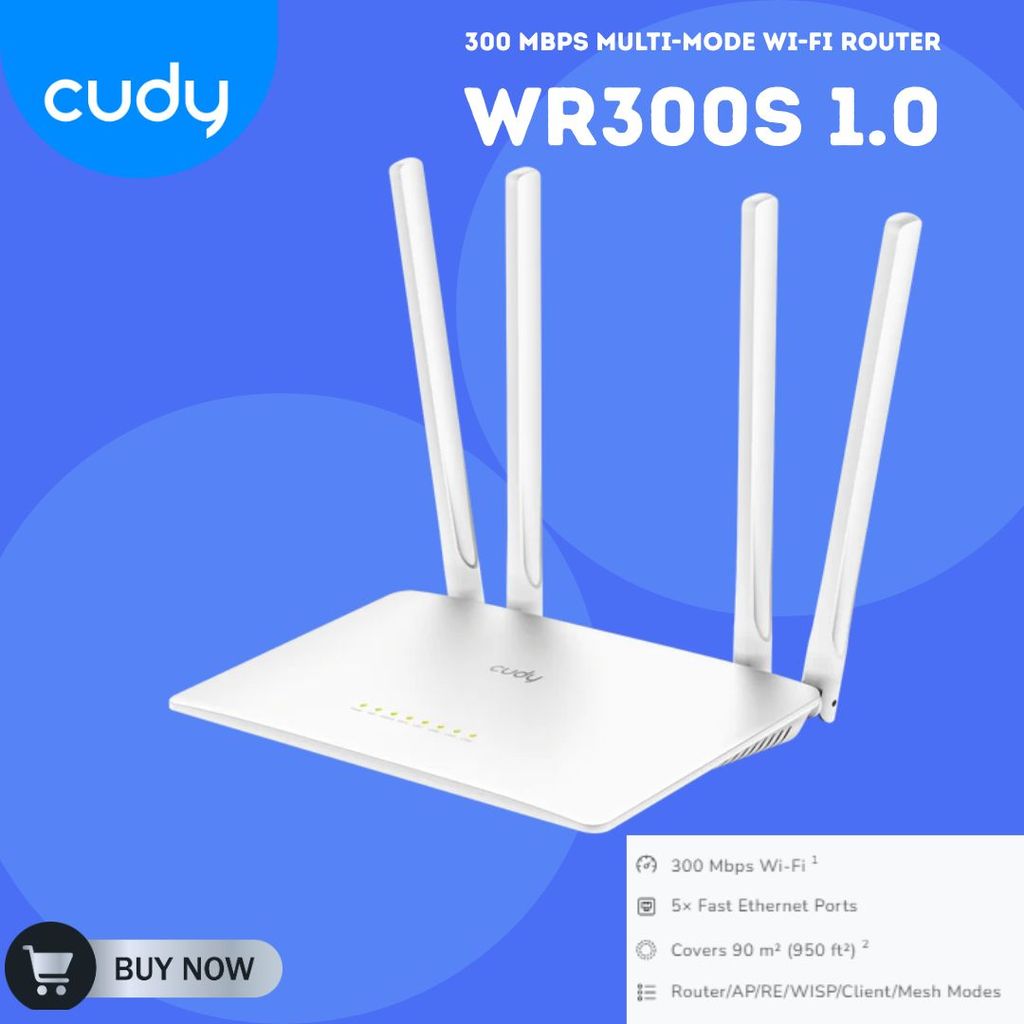

CUDY WR300S Wi-Fi Router/AP/RE/WISP/Client/Mesh Modes
CUDY WR300S Wi-Fi Router/AP/RE/WISP/Client/Mesh Modes
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Model Version WR300S 1.0
CPU CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA 2.4 GHz: 2× Internal
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces 10/100 Mbps RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
System
Wi-Fi
Internet
WAN
LAN
Physical Buttons Reset/WPS Button
Power Interfaces DC Jack
Power Power Methods DC
Power Input 5V?1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 5V?1A
Reliability Environment
Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
Desktop
Wall-mount
Dimension Main Part:
220×135×30 mm
8.66×5.31×1.18 inches
Product Weight 249.8 g (8.81 oz.)
Package Content
WR300S
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight EU: 612.5 g (21.61 oz.)
Retail Package Dimension 290×250×64 mm
11.42×9.84×2.52 inches
Units per Carton 16
Carton Dimension 53.8×51.6×31.3 cm
21.18×20.31×12.32 inches
Carton Gross Weight EU: 10.9 kg (24.03 lbs)
Carton Net Weight EU: 9.8 kg (21.61 lbs)
