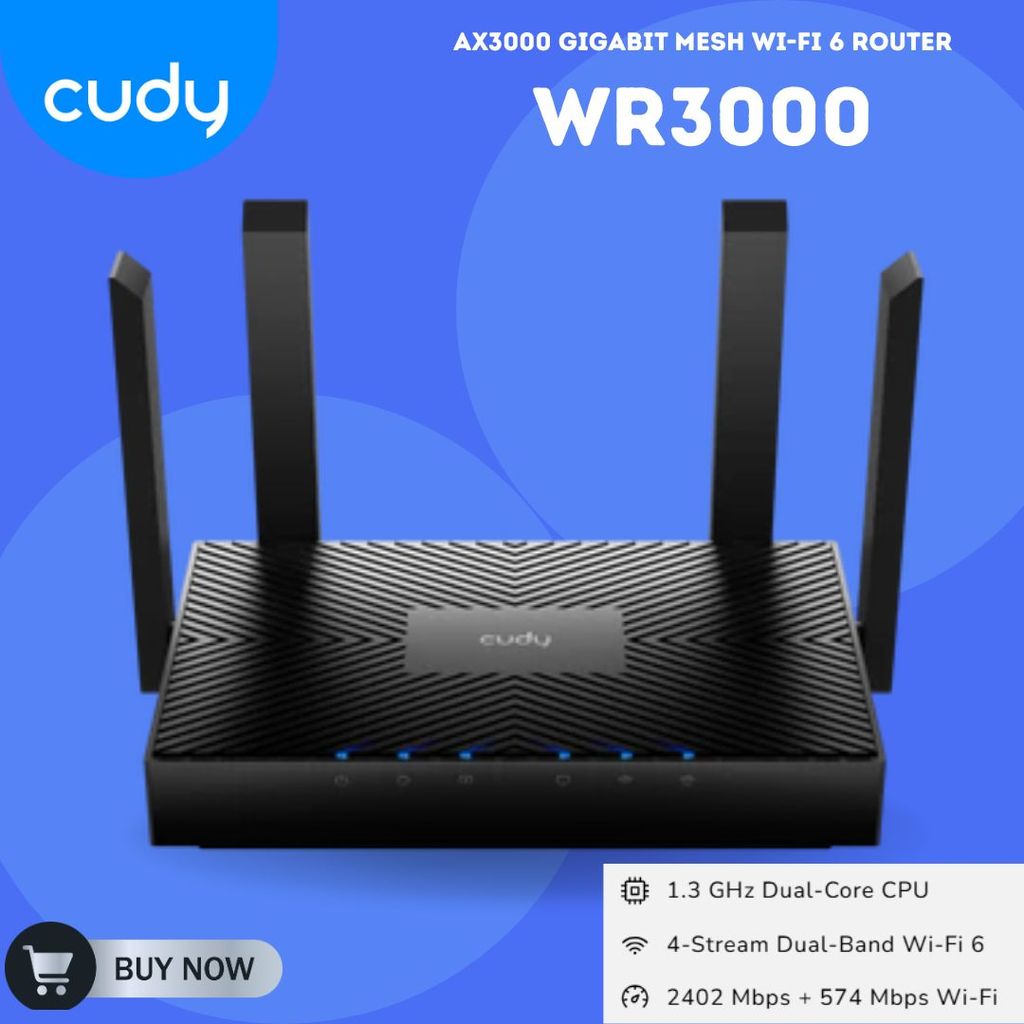

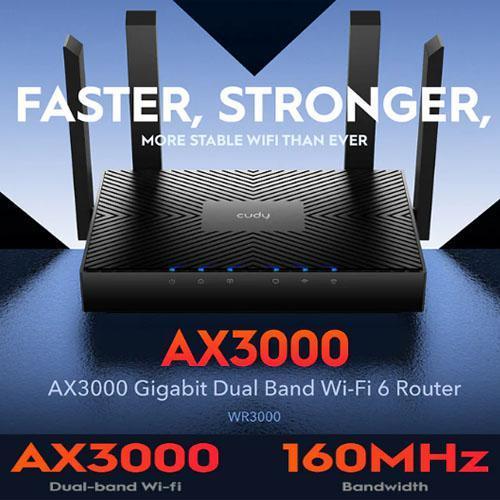

CUDY WR3000 AX3000 GIGABIT WiFi 6 ROUTER

A WiFi 6 router with four Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.

- 1.3 GHz Dual-Core CPU

- 4-Stream Dual-Band Wi-Fi 6

- 2402 Mbps + 574 Mbps Wi-Fi

- 4× Gigabit Ethernet Ports

- 200 Connected Devices

- Covers 130 m² (1,400 ft²)

- Cudy Mesh, VPN Server and Client

- Cudy App, Cloud Control

Model Version     WR3000 1.0

CPU     CPU Details     1.3 GHz Dual-Core, ARM Cortex-A53

Memory/Storage     Flash/ROM     16 MB (128 Mbit) NOR

DDR/RAM     256 MB (2 Gbit) DDR3

Wireless     5 GHz Wi-Fi Speed     2402 Mbps

2.4 GHz Wi-Fi Speed     574 Mbps

5 GHz Wi-Fi Streams     2T2R (2×2 MIMO) with an Extra Stream

2.4 GHz Wi-Fi Streams     2T2R (2×2 MIMO)

Wi-Fi Antennas     4× Fixed

5 GHz Antenna Gain Max     4.8dBi

2.4 GHz Antenna Gain Max     3.4dBi

FEM or PA/LNA

5 GHz: 3× Internal

2.4 GHz: 2× Internal

Beamforming     True

Range Performance     Max: 200 m (656 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance     Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces     Gigabit RJ45 Ports     4

Ethernet Notes     1× WAN port, the rest are LAN ports

LED

System

Internet

WAN

LAN

2.4 GHz Wi-Fi

5 GHz Wi-Fi

Physical Buttons

WPS Button

Reset Button

Power Input     DC Jack

Power     Power Methods     DC

DC     12V 1A

Power Adapter     Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W)     11.5w

Idle Power Consumption (W)     4.2w

Reliability     Environment

Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)

Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Certifications     FCC, CE

Mechanical     Installation

Desktop

Wall-mount

Dimension     183.3×109×35 mm

7.22×4.29×1.38 inches

Product Weight

BR: 295 g (10.41 oz.)

ZH: 295.8 g (10.43 oz.)

Package Content

WR3000

Power Adapter

Ethernet Cable

Installation Guide

Ordering Information     Retail Package Weight

BR: 589 g (20.78 oz.)

EU: 614 g (21.66 oz.)

UK: 626 g (22.08 oz.)

US: 615 g (21.69 oz.)

ZH: 589.2 g (20.78 oz.)

Retail Package Dimension     240×230×60 mm

9.45×9.06×2.36 inches

Units per Carton     20

Carton Dimension     49.5×32.5×48 cm

19.49×12.8×18.9 inches

Carton Gross Weight

BR: 12.9 kg (28.44 lbs)

EU: 13.5 kg (29.76 lbs)

UK: 13.6 kg (29.98 lbs)

US: 13.1 kg (28.88 lbs)

ZH: 12.8 kg (28.22 lbs)

Carton Net Weight

BR: 11.8 kg (26.01 lbs)

EU: 12.3 kg (27.12 lbs)

UK: 12.5 kg (27.56 lbs)

US: 12.3 kg (27.12 lbs)

ZH: 11.8 kg (26.01 lbs)

Wireless     Wi-Fi Standards     Wi-Fi 6

Max Wi-Fi Modulation     1024-QAM

Wi-Fi Efficiency

OFDMA

MU-MIMO

BSS Color

Max Capacity     512

Recommended Client Upper Limit     200

Max Wi-Fi Channel Width     160 MHz

Wi-Fi Security     WPA/WPA2/WPA3

Guest Network     2.4 GHz, 5 GHz

WPS     True

General     Operation Modes

Wi-Fi Router

Access Point

Range Extender

WISP

Client

Mesh     Cudy Mesh
