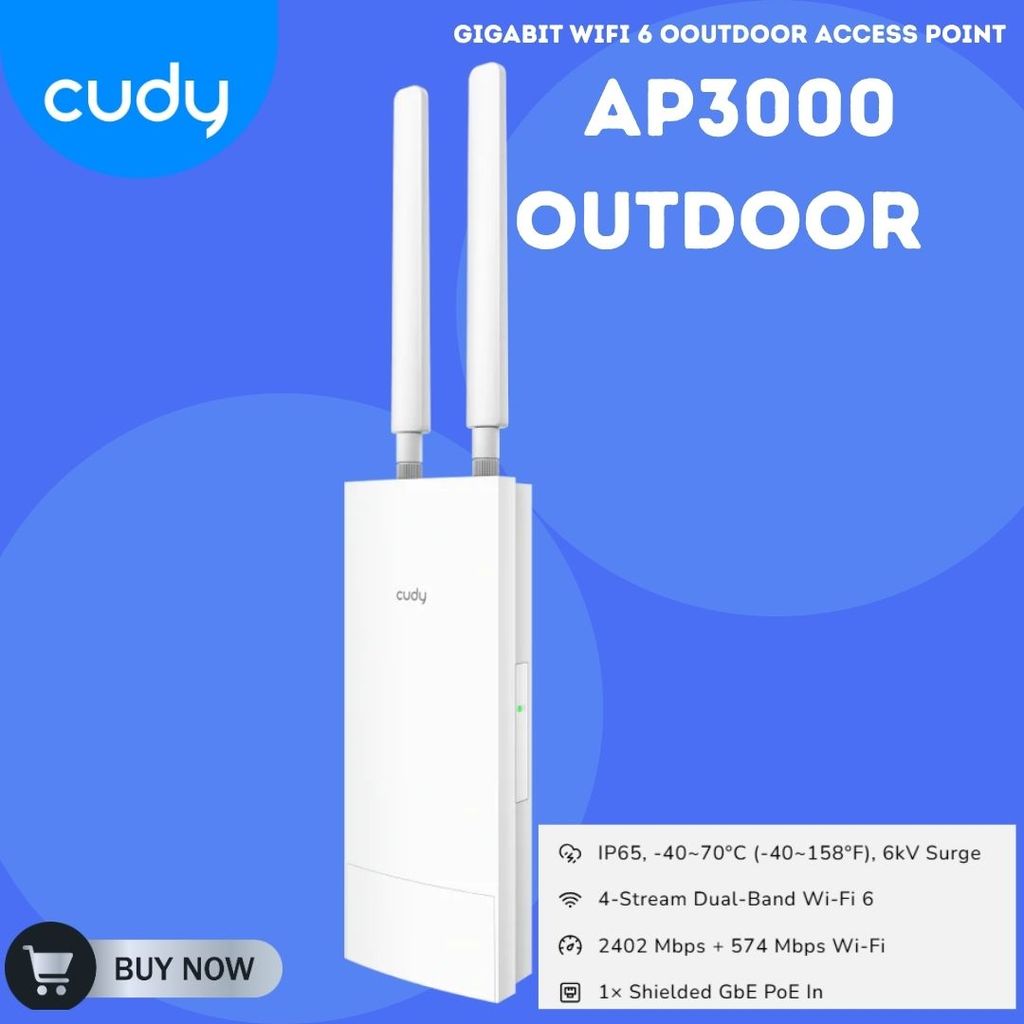

CUDY AP3000 AX3000 GIGABIT WiFi 6 OOUTDOOR ACCESS POINT
CUDY AP3000 AX3000 GIGABIT WiFi 6 OOUTDOOR ACCESS POINT
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /05/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.
- IP65, -40~70°C (-40~158°F), 6kV Surge
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi
- 1× Shielded GbE PoE In
- 802.3at, 48~57V Passive PoE
- Watchdog, Schedule Reboot
- Max 320 m (1050 ft) Range
- 200 Connected Devices
Model Version AP3000 Outdoor 1.0
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 1× Internal+2× External
5 GHz Antenna Gain Max 6 dBi
2.4 GHz Antenna Gain Max 4 dBi
FEM or PA/LNA
5 GHz: 3× High-Power
2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming True
Range Performance Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)
Wall Performance NA
Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons
WPS Button
Reset Button
Power Input PoE via Ethernet Port
Power Power Methods
802.3at PoE
Passive PoE
Passive PoE 48 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 18 W
Idle Power Consumption (W) 5 W
Reliability Advanced Hardware Watchdog
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: -40 ? ~ 65 ? (-40 ? ~149 ?)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE
Mechanical Installation
Wall-mount
Pole-mount
Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
Product Weight 455 g (16.05 oz.)
Package Content
AP3000 Outdoor
Detachable Antennas
PoE Adapter
Power Cord
Mounting Kit
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight EU: 856 g (30.19 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Units per Carton 20
Carton Net Weight EU: 20.6 kg (45.42 lbs)
Carton Gross Weight EU: 21.4 kg (47.18 lbs)
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity 256
Recommended Client Upper Limit 100
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General Operation Modes
Wi-Fi Router
Access Point
Range Extender
WISP
Client
Mesh Cudy Mesh
Description
Description
A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.
- IP65, -40~70°C (-40~158°F), 6kV Surge
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi
- 1× Shielded GbE PoE In
- 802.3at, 48~57V Passive PoE
- Watchdog, Schedule Reboot
- Max 320 m (1050 ft) Range
- 200 Connected Devices
Model Version AP3000 Outdoor 1.0
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 1× Internal+2× External
5 GHz Antenna Gain Max 6 dBi
2.4 GHz Antenna Gain Max 4 dBi
FEM or PA/LNA
5 GHz: 3× High-Power
2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming True
Range Performance Max: 320 m (1050 ft)
Park: 280 m (919 ft)
Street: 70 m (230 ft)
Woods: 40 m (131 ft)
Wall Performance NA
Interfaces Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons
WPS Button
Reset Button
Power Input PoE via Ethernet Port
Power Power Methods
802.3at PoE
Passive PoE
Passive PoE 48 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 18 W
Idle Power Consumption (W) 5 W
Reliability Advanced Hardware Watchdog
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: -40 ? ~ 65 ? (-40 ? ~149 ?)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 10% ~ 95% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE
Mechanical Installation
Wall-mount
Pole-mount
Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
Product Weight 455 g (16.05 oz.)
Package Content
AP3000 Outdoor
Detachable Antennas
PoE Adapter
Power Cord
Mounting Kit
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight EU: 856 g (30.19 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Units per Carton 20
Carton Net Weight EU: 20.6 kg (45.42 lbs)
Carton Gross Weight EU: 21.4 kg (47.18 lbs)
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity 256
Recommended Client Upper Limit 100
Max Wi-Fi Channel Width 160 MHz
Wi-Fi Security WPA/WPA2/WPA3
WPS True
General Operation Modes
Wi-Fi Router
Access Point
Range Extender
WISP
Client
Mesh Cudy Mesh
