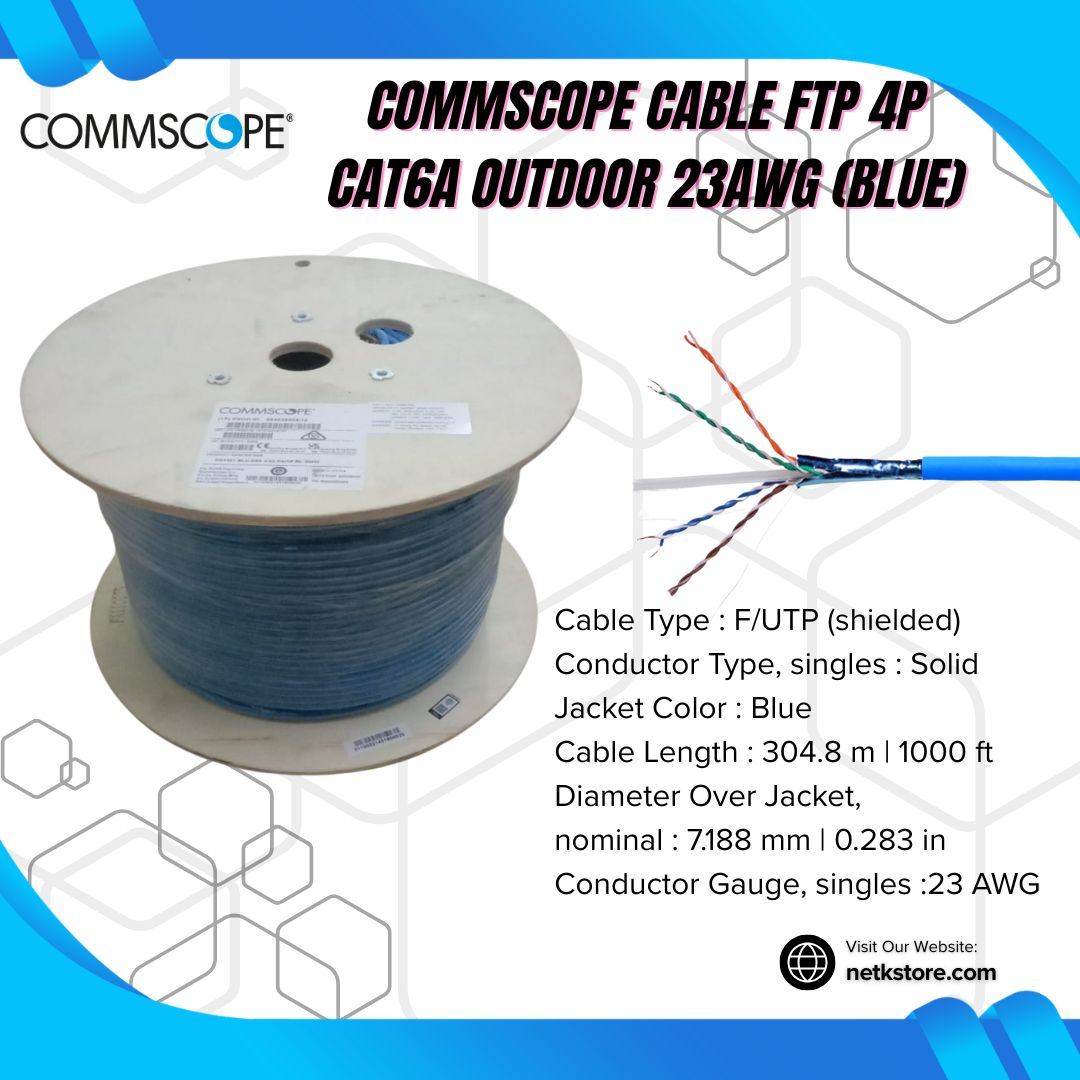

COMMSCOPE CABLE FTP 4P CAT6A OUTDOOR 23AWG (BLUE)
COMMSCOPE CABLE FTP 4P CAT6A OUTDOOR 23AWG (BLUE)
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /05/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Product classification
Regional Availability Asia | EMEA | Australia/New Zealand | China
Portfolio NETCONNECT®
Product Type Twisted pair cable
General Specifications
Product Number CS44Z1
ANSI/TIA Category 6A
Cable Component Type Horizontal
Cable Type F/UTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Drain Wire Type Solid
Jacket Color Blue
Pairs, quantity 4
Separator Type Isolator
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Dimensions
Cable Length 304.8 m | 1000 ft
Diameter Over Insulated Conductor 1.14 mm | 0.0449 in
Diameter Over Jacket, nominal 7.188 mm | 0.283 in
Conductor Gauge, singles 23 AWG
Drain Wire Gauge 26 AWG
Cross Section Drawing
Click on image to enlarge.
Electrical Specifications
Characteristic Impedance 100 ohm
Characteristic Impedance Tolerance ±15 ohm
dc Resistance, maximum 7.8 ohms/100 m | 2.377 ohms/100 ft
Delay Skew, maximum 45 ns
Dielectric Strength, minimum 1500 Vac | 2500 Vdc
Mutual Capacitance at Frequency 5.6 nF/100 m @ 500 MHz
Nominal Velocity of Propagation (NVP) 69 %
Operating Voltage, maximum 80 V
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Segregation Class c
Material Specifications
Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material Low Smoke Zero Halogen (LSZH)
Shield (Tape) Material Aluminum/Polyester
Mechanical Specifications
Pulling Tension, maximum 11.34 kg | 25 lb
Environmental Specifications
Installation temperature 0 °C to +60 °C (+32 °F to +140 °F)
Operating Temperature -20 °C to +75 °C (-4 °F to +167 °F)
Acid Gas Test Method IEC 60754-2
EN50575 CPR Cable EuroClass Fire Performance No Rating
Environmental Space Low Smoke Zero Halogen (LSZH)
Temperature Rating, UL 75 °C | 167 °F
Flame Test Method IEC 60332-1
Smoke Test Method IEC 61034-2
Packaging and Weights
Packaging Type Reel
Regulatory Compliance/Certifications
Agency Classification
CHINA-ROHS Below maximum concentration value
RCM Compliant to electrical safety & telecommunications requirements
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
