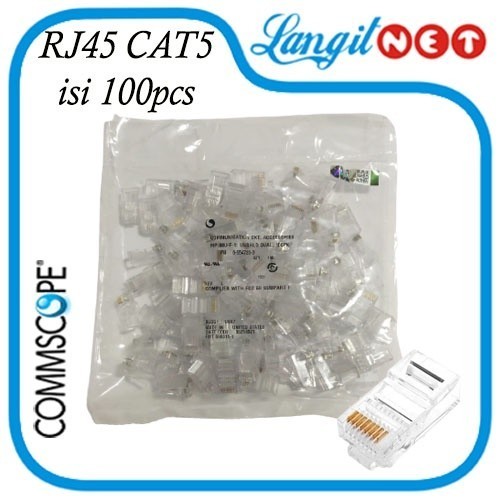

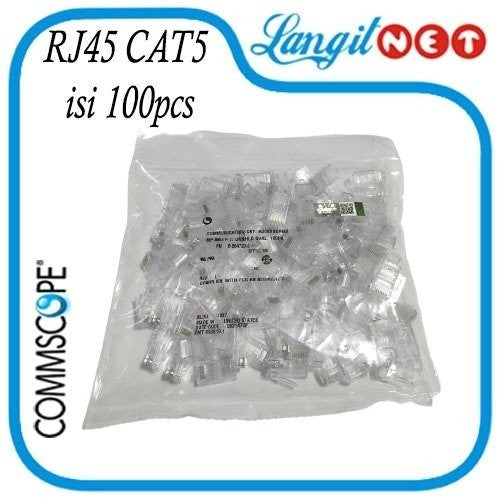

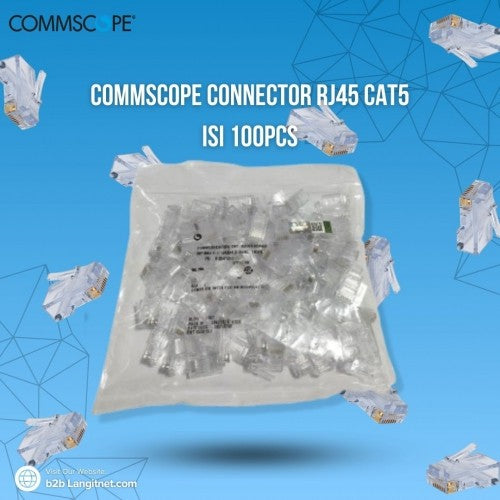

COMMSCOPE CONNECTOR RJ45 CAT5 isi 100pcs
COMMSCOPE CONNECTOR RJ45 CAT5 isi 100pcs
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Tidak dapat memuat ketersediaan pengambilan
Guaranteed Safe Checkout
VIDEO PRODUK :
youtube.com/watch?v=CeZPqeE6NN0
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio : CommScope
Product Type : Modular plug
General Specifications
ANSI/TIA Category : 5
Cable Type : Flat oval, unshielded
Conductor Type Solid | Stranded
Interface : RJ45
Positions/Loaded Contacts : 8/8
Termination Type : IDC
Dimensions
Compatible Cable Diameter, maximum : 8.89 mm | 0.35 in
Compatible Cable Diameter, minimum : 2.54 mm | 0.1 in
Compatible Insulated Conductor Diameter, maximum : 0.99 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum : 0.86 mm | 0.034 in
Contact Plating Thickness : 1.27 m
Compatible Conductor Gauge, solid : 2624 AWG
Compatible Conductor Gauge, stranded : 2624 AWG
Electrical Specifications
Current Rating, maximum : 0.75 A
Insulation Resistance, minimum : 500 mOhm
Safety Voltage Rating : 150 Vac
Material Specifications
Contact Base Material : Phosphor Bronze
Contact Plating Material : Gold
Material Type : Glass filled polycarbonate
Mechanical Specifications
Plug Insertion Life, minimum : 750 times
Environmental Specifications
Operating Temperature : -10 C to +60 C (+14 F to +140 F)
Relative Humidity : Up to 93%, non-condensing
Flammability Rating : UL 94 V-2
Safety Standard UL 1863
Packaging and Weights
Packaging quantity 100
