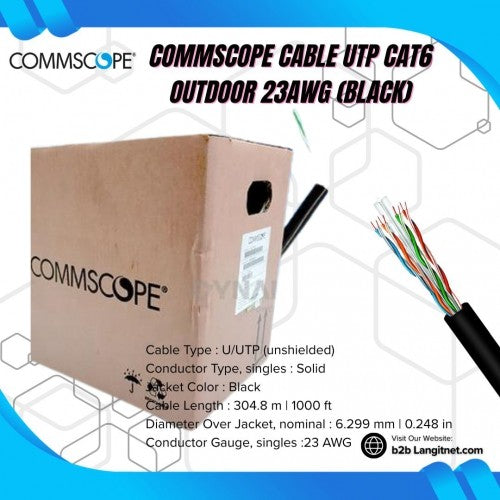

COMMSCOPE CABLE UTP CAT6 OUTDOOR 23AWG (BLACK)
COMMSCOPE CABLE UTP CAT6 OUTDOOR 23AWG (BLACK)
In stock
-
All orders are dispatched the next business day!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Tidak dapat memuat ketersediaan pengambilan
Guaranteed Safe Checkout
Product classification
Regional Availability Asia
Portfolio NETCONNECT®
Product Type Twisted pair cable
General Specifications
ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Black
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Dimensions
Cable Length 304.8 m | 1000 ft
Diameter Over Jacket, nominal 6.299 mm | 0.248 in
Conductor Gauge, singles 23 AWG
Cross Section Drawing
Click on image to enlarge.
Electrical Specifications
Characteristic Impedance 100 ohm
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Material Specifications
Conductor Material Bare copper
Jacket Material PE
Environmental Specifications
Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space UV resistant for outdoor
Flame Test Method NEC Article 800 | UL 444
Packaging and Weights
Packaging Type Pull box
Regulatory Compliance/Certifications
Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
