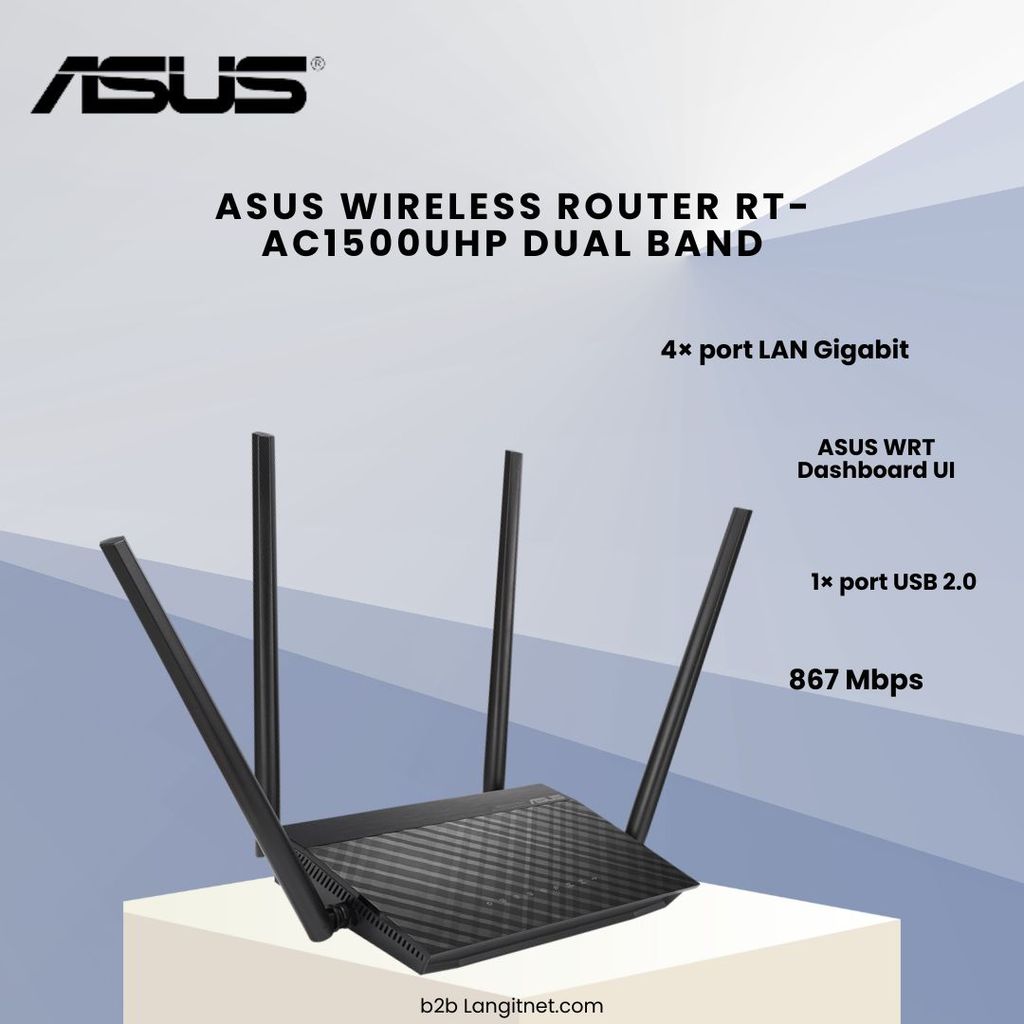

ASUS Wireless Router RT-AC1500UHP Dual Band

Model Name : RT-AC1500UHP

Network Standard :

- IEEE 802.11a

- IEEE 802.11b

- IEEE 802.11g

- WiFi 4 (802.11n)

- WiFi 5 (802.11ac)

- IPv4

- IPv6

Data Rate :

- 802.11a : up to 54 Mbps

- 802.11b : up to 11 Mbps

- 802.11g : up to 54 Mbps

- WiFi 4 (802.11n) : up to 600 Mbps

- WiFi 5 (802.11ac) : up to 867 Mbps

Antenna : External antenna x 4

Transmit/Receive :

- MIMO technology

- 2.4GHz 4x4

- 5GHz 2x2

Processor :

- 74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz

Memory :

16 MB Flash, 128 MB RAM

Boosts speed :

- Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee

- 256-QAM high data rate

- 20/40/80 MHz bandwidth

Operating Frequency : 2.4G Hz / 5 GHz

Ports :

- RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

- USB 2.0 x 1

Button : WPS Button, Reset Button, Power Button

LED Indicator :

- Power x 1

- Wi-Fi x 2

- WAN x 1

- USB x 1

- LAN x 4

Power Supply :

- AC Input : 100V~240V(50~60Hz)

- DC Output : 12 V with max. 1.5 A current

Package content :

- RT-AC1500UHP Gigabit Wi-Fi Router

- RJ-45 Cable

- Quick Start Guide

- Power Adapter

- Warranty Card

Router APP :

- ASUS Router APP : Yes

Game :

- Game Boost/acceleration : No

- WTFast : No

Wireless :

- IPv6 : Yes

- MU-MIMO : No

- Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

- UTF-8 SSID : Yes

- Guest Network : Yes

- Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

- Guest Network Encryption : Open system, WPA/WPA2-Personal

WAN :

- Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

- Dual WAN : No

- WAN Aggregation : No

- 3G/4G LTE dongle : Yes

- Android tethering : Yes

- Port forwarding : Yes

- Maximum port forwarding rule : 64

- Port triggering : Yes

- Maximum port triggering rule : 32

LAN :

- DHCP Server : Yes

- IPTV : Yes

- LAN Link Aggregation : No

- Manually assign IP address : Yes

- Maximum manually assign IP address rule : 64
